Antec High Current Gamer Series HCG750 Gold, 750W Fully Modular Power Supply - HCG750 Gold en - No data

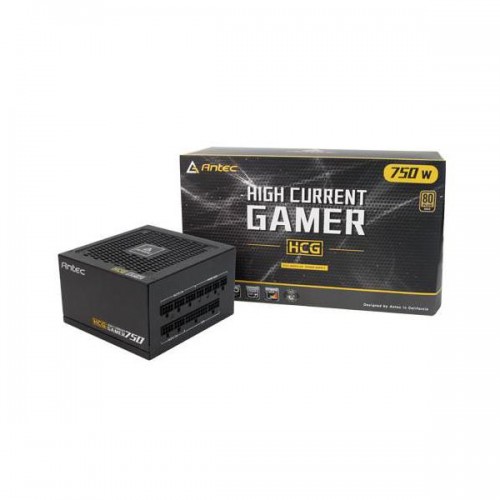

Antec High Current Gamer Series HCG750 Gold, 750W Fully Modular Power Supply - HCG750 Gold
  • Brand: Antec
  • Model No: HCG750 Gold
  • Reward Points: 10
  • Availability: In Stock
  • Shipping Free
₹8,950 Price in reward points: 10

Learn more about the Antec HCG750 Gold

SPECIFICATIONS –

Model

Brand

Antec

Series

High Current Gamer Gold Series

Model

HCG750 Gold



Details

Type

ATX 12V 2.4

Maximum Power

750W

Fans

120mm FDB Silence fan

PFC

Active

Main Connector

20+4Pin

+12V Rails

Single

PCI-Express Connector

4 x 6+2-Pin

SATA Power Connector

8

Modular

Full Modular

Power Good Signal

100-500ms

Efficiency

92% Typically

Energy-Efficient

80 PLUS GOLD Certified

Over Voltage Protection

Yes

Input Voltage

100 - 240 V

Input Frequency Range

50Hz - 60Hz

Input Current

10A - 5A

Output

+3.3V@20A, +5V@20A, +12V@62A, [email protected], [email protected]

Approvals

cTUVus / TUV / CB / RCM / CE / EAC / CCC / BSMI / FCC / KR

Dimensions

5.91" x 5.51" x 3.39"

Max PSU Length

140 mm

Weight

4.65 lbs.



Features

Features

Guaranteed 750W of Continuous Power from Antec

100% Modular-Improves airflow and reduces clutter

80 PLUS GOLD certified-Up to 92% efficient, to reduce your electricity bill

PhaseWave Design-A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology

Antec Quality 10-year warranty and lifetime global 24/7 support

120mm FDB Silence-Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime

Zero RPM Manager-An advanced low voltage fan control with fan-off mode at low loads for absolute silence

99%+12V - Output for maximum CPU & GPU support

CircuitShield-Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO

100% Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance

28(18+10) pin MBU socket - For possible future MBU connectors

ATX12V 2.4-Engineered according to the newest PSU guideline and compatible with the latest CPU generation

Compact size 140mm depth power supply is the best choice for compact ATX chassis



Feature

Features

1 x MB 24(20+4) Pin
2 x 8(4+4) Pin EPS 12V
4 x 8(6+2) Pin PCI-E
8 x SATA
3 x Molex
1 x FDD



WARRANTY

  • Limited Warranty period (parts): 10 years
  • Limited Warranty period (labor): 10 years
