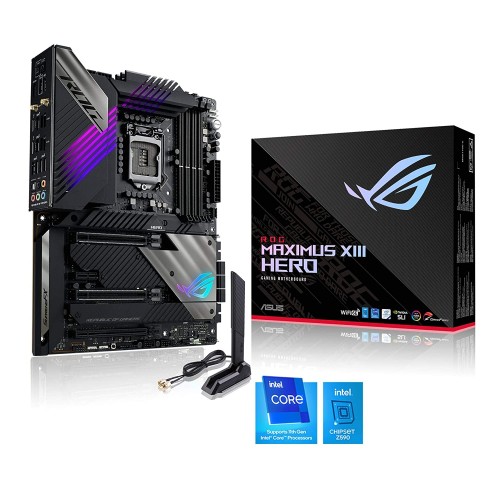

ASUS ROG Maximus XIII Hero (WiFi 6E) Z590 LGA 1200 (Intel 11th/10th Gen) ATX Gaming Motherboard - MAXIMUS XIII HERO en - No data

  • Brand: Asus
  • Model No: MAXIMUS XIII HERO
  • Reward Points: 10
  • Availability: In Stock
  • Shipping Free
₹42,500 Price in reward points: 10

Learn more about the Asus MAXIMUS XIII HERO

SPECIFICATIONS –

CPU Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  * Refer to www.asus.com for CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel® Z590 Chipset
Memory 4 x DIMM, Max. 128GB, DDR4


5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)

/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)

/3466(OC)/3400(OC)/3333(OC)/3200/3000/2

  933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports Intel®
  Extreme Memory Profile (XMP)
  OptiMem III
  * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
  * 11th Gen Intel® Core™ processors support 3200/2933/2800/2666/2400/2133 natively.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types
Graphics 1 x HDMITM 2.0**
  2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs
  * Graphics specifications may vary between CPU types.
  ** Only Intel® 11th Core™ processors support HDMI™ 2.0 with max. resolution of [email protected], others will only support HDMI™ 1.4 with max. resolution of [email protected] .Please refer to
  www.intel.com for any updates
Expansion Slots Intel®
  11th &10th Gen Processors
  2 x PCIe 4.0/3.0 x16 slot(s)*
  - Intel® 11th Core™ processors support PCIe 4.0 x16 or x8/x8 or x8/x4 mode(s)
  - Intel® 10th Core™ processors support PCIe 3.0 x16 or x8/x8 or x8/x4 mode(s)
  Intel® Z590 Chipset
  1 x PCIe 3.0 x16 slot (supports x4 mode)**
  1 x PCIe 3.0 x1 slots
  * Supports PCIe bandwidth bifurcation for RAID on CPU function.
  **PCIEX16_3 shares bandwidth with SATA6G_12 and SATA6G_34. When PCIEX16_ 3 is populated SATA6G_12 and SATA6G_34 will be disbabled.
  When PCIEX16_3 run at default (x2) mode, SATA6G_34 is disabled.
  When PCIEX16_3 run at x4 mode, SATA6G_12 and SATA6G_34 are disabled
Multi-GPU Support Supports NVIDIA 2-Way SLI®
  Technology*
  *Support varies with different graphics cards
Storage Total supports 4 x M.2 slots and 6 x SATA 6Gb/s ports
  Intel® 11th &10th Gen Processors*
  M.2_1 slot (Key M), type 2242/2260/2280/22110
  - Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
  M.2_2 slot (Key M), type 2242/2260/2280
  - Intel® 11th Core™ processors support PCIe 4.0 x4 mode
  - Intel® 10th Core™ processors support PCIe 3.0 x4 mode
  Intel® Z590 Chipset
  M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
  M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)**
  6 x SATA 6Gb/s ports
  Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party
  SSDs installed in PCH-attached slots.
  To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
  **When M.2_4 is pupulated, SATA6G_56 will be disabled.
Ethernet 2 x Intel® I225-V 2.5Gb Ethernet
  ASUS LANGuard
Wireless & Bluetooth Intel® Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5/6GHz frequency band*
  Bluetooth v5.2 hardware ready**
  * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 10 build 21H1 or later.
  ** Bluetooth 5.2 function will be ready in Windows 10 build 21H1 or later
USB Rear USB (Total 10 ports)
  2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®)
  with up to 5V/3A, 15W charging support
  6 x USB 3.2 Gen 2 port(s) (6 x Type-A)
  2 x USB 2.0 port(s) (2 x Type-A)
  Front USB (Total 9 ports)
  1 x USB 3.2 Gen 2x2 connector(s) (suppport(s) USB Type-C®)
  2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
  2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
  - Impedance sense for front and rear headphone outputs
  - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  - Supports up to 32-Bit/384 kHz playback
  Audio Features
  - SupremeFX Shielding Technology
  - ESS® SABRE9018Q2C DAC/AMP
  - Gold-plated audio jacks
  - Rear optical S/PDIF out port
  - Premium Japanese audio capacitors
  - Audio cover
Back Panel I/O Ports 2 x Thunderbolt™ 4 USB Type-C® port(s)
  6 x USB 3.2 Gen 2 port(s) (6 x Type-A)
  2 x USB 2.0 port(s) (2 x Type-A)
  1 x HDMI™ port
  1 x ASUS Wi-Fi Module
  2 x Intel® I225-V 2.5Gb Ethernet
  5 x Gold-plated audio jacks
  1 x Optical S/PDIF out port
  1 x BIOS FlashBack™ button
  1 x Clear CMOS button
Internal I/O Connectors Fan and Cooling related
  1 x 4-pin CPU Fan header(s)
  1 x 4-pin CPU OPT Fan header(s)
  1 x 4-pin AIO Pump header(s)
  3 x 4-pin Chassis Fan header(s)
  1 x 4-pin H_AMP Fan header(s)
  1 x W_PUMP+ header(s)
  1 x 2-pin Water In header
  1 x 2-pin Water Out header
  1 x 3-pin Water Flow header
  Power related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V Power connector
  Storage related
  4 x M.2 slots (Key M)
  Internal I/O Connectors
  Back Panel I/O Ports
  ROG MAXIMUS XIII HERO_One Page Spec
  Note: The specifications are subject to change without notice.
  CPU
  Memory
  Expansion Slots
  Multi-GPU Support
  Ethernet
  USB
  Audio
  Storage
  Graphics
  Wireless & Bluetooth
  6 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®
  )
  2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
  2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
  Miscellaneous
  3 x AURA Addressable Gen 2 header(s)
  1 x AURA RGB header(s)
  1 x FlexKey button
  1 x Front Panel Audio header (AAFP)
  1 x ReTry button
  1 x Speaker header
  1 x SPI TPM header (14-1pin)
  1 x Start button
  1 x 10-1 pin System Panel header
  1 x Thermal Sensor header
Special Features Extreme OC Kit
  - FlexKey button
  - ReTry button
  - Start button
  Extreme Engine Digi+
  - 10K Black Metallic Capacitors
  - MicroFine Alloy Choke
  ASUS Q-Design
  - Q-Code
  - Q-Connector
  - Q-DIMM
  - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  - Q-Slot
  ASUS Thermal Solution
  - M.2 heatsink backplate
  - M.2 heatsink
  - VRM heatsink design
  ASUS EZ DIY
  - BIOS FlashBack™ button
  - Clear CMOS button
  - ProCool II
  - Pre-mounted I/O shield
  - SafeSlot
  AURA Sync
  - AURA RGB header(s)
  - Addressable Gen 2 RGB header(s)
  ASUS HYDRANODE
  - 3 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P,CHA_FAN3P)
Software Features ROG Exclusive Software
  - Mem Tweakit
  - RAMCache III
  - ROG CPU-Z
  - GameFirst VI
  - Sonic Studio III + Sonic Studio Virtual Mixer
  - Sonic Radar III
  - DTS®
  Sound Unbound
  - Overwolf
  - BullGuard Internet Security (1-year full version)
  ASUS Exclusive Software
  Armoury Crate
  - AIDA64 Extreme (1 year full version)
  - AURA Creator
  - AURA Sync
  - Two-Way AI Noise Cancelation
  AI Suite 3
  - 5-Way Optimization with AI Overclocking
  TPU
  EPU
  DIGI+ Power Control
  Fan Xpert 4
  Turbo app
  - EZ update
  AI Charger
  DAEMON Tools
  MyASUS
  WinRAR
  UEFI BIOS
  MemTest86
  AI Overclocking Guide
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
  1 x ARGB RGB extension cable
  1 x RGB extension cable
  4 x SATA 6Gb/s cables
  Miscellaneous
  1 x ASUS Wi-Fi moving antennas
  1 x M.2 SSD screw package(s)
  1 x Q-connector
  1 x ROG key chain
  1 x ROG logo plate stickers
  1 x ROG Graphics card holder
  1 x ROG stickers
  1 x ROG thank you card
  Installation Media
  1 x Support DVD
  Documentation
  1 x User manual
Operating System Windows® 10 64-bit
Form Factor ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )



WARRANTY

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
