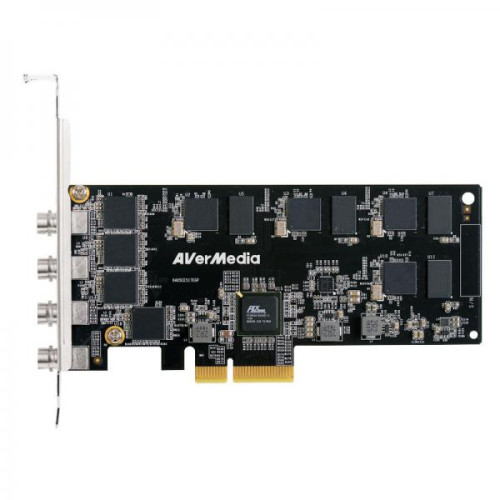

AVerMedia 4 Channel Full HD SDI Capture Card CL334-SN
  • Brand: Aver Media
  • Model No: CL334-SN
  • Reward Points: 10
  • Availability: In Stock
  • Shipping Free
₹68,490 Price in reward points: 10

Learn more about the Aver Media CL334-SN

SPECIFICATIONS –

Host Interface   PCIe Gen 1 x 4
Audio Interface  SDI embedded audio
Audio Format PCM
Audio Sampling Rate  32KHz, 44.1KHZ, 48KHz
Connector Type  Mini BNC
Input Interface  Mini BNC
Video Format  YUV2 RGB24 RGB32
Color Depth  8-bit
Channel No.  4 Ch
Max. Input Resolution  1920 x 1080 60fps
Max. Capturing Resolution 1920 x 1080 30fps
Input Video Resolution

SD-SDI:
[email protected](60i)
[email protected](50i)

HD-SDI:
[email protected](50/60)
[email protected](50i/60i/24p/25p/30p)

3G-SDI:
[email protected](50p/60p)
Capture Resolution [email protected](60i)
[email protected](50i)
[email protected](50/60)
[email protected](24p/25p/30p)
Encoding Mode  Hardware Encoding (H.264)
Multi-Card Support Yes
Supported OS  Windows 7/8.1/10 (32/64 bits)*
Form factor  Low Profile
Dimension (L x W)  145 x 68.78 mm
Power Consumption  5W
Operating Temperature  0°C ~ 65°C
Operating Humidity  5% - 80% Relative Humidity
Safety Certification  FCC / CE
Warranty 1 Year

FEATURES

Hardware encoding

Equipped with an advanced H.264 hardware encoder, the CL334-SN enables the system to encode without impacting the CPU’s computing power and still provide high quality video. This feature will help balance the CPU loading and will increase the system’s reliability. As a result, the CL334-SN will significantly reduce the computing efforts on hardware and software allowing the user to focus on other important parts of the application in hand.

Hardware scaling, de-interlacing, and color space conversion

AVerMedia hardware-based video engine technology implements the most useful video processing functions, including scaling, de-interlacing, and color space conversion. This can significantly help you reduce the computing burden on software and hardware, which allows you to focus on other important parts of your application.
