|Input||HDMI (1.3/ HDCP 1.3)|
|Composite / S-Video|
|Input Video Resolution
(Note: Signal is considered progressive unless otherwise stated.)
|HDMI (1.3/ HDCP 1.3)|
|Any resolution under:
a. video width ≦ 1,920
b. video height ≦ 1,200
c. pixel clock < 162MHz
|Composite / S-Video
[email protected] (NTSC), [email protected] (PAL)
[email protected](60i), [email protected](50i)
[email protected](50/60), [email protected](50i/60i/24p/25p/30p)
|Capture Video format
(*Captured format is converted to progressive scan)
|640x480, 720x480, 720x576, 800x600, 1024x768, 1280x720, 1280x768, 1280x800, 1280x1024, 1360x768, 1440x900, 1680x1050, 1920x1080, 1920x1200|
|**There are two options for frame rate
(1) The same as input source.
(2) Fixd frame rate, range 5~60.
|Pixel Format||YUY2 (4:2:2)|
|Color Adjustment||Brightness, Contrast, Hue , Saturation|
|Audio Sampling||Audio L/R: 48KHz, 16bit|
|HDMI: 32KHz/44.1KHz/48KHz, 16bit|
|SDI: 48KHz, 16bits|
|Audio Capture Filter Support||Yes|
|HW / SW Encode Support||SW|
|Dimensions (L x W x H)||218 x 132 x 43mm|
|Supported OS||Windows 7/8.1/10 (32/64 bits)|

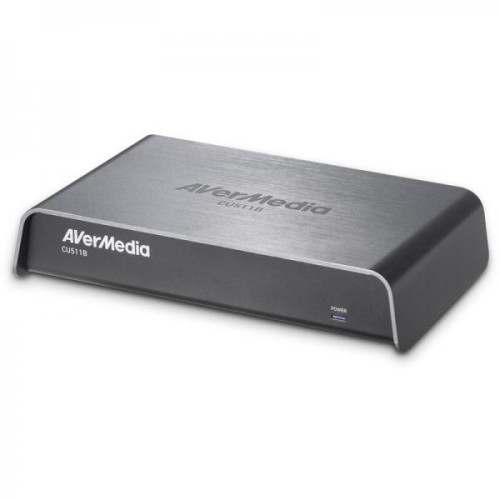

Versatility and reliability, all from AVerMedia’s CU511B configurable USB video capture solution, designed to capture video from any analog or digital source in resolutions up to 1920×1200, regardless of video content. Whether you’re dependent on Windows or Linux, the CU511B supports simultaneous capture of stereo or single channel digital HDMI audio.
CU511B is the perfect capture solution for those who require full control during capturing, recording and previewing process. The included Capture Studio bundle allows for extensive flexibility to set image scaling, audio resampling and color space conversion for use in professional video capture settings. Additionally, the included AVerMedia Resolution Tool offers a reliable solution to meet any industrial requirement in need of pixel rate and output positioning function.
Lightning Fast Video Transfer with USB 3.0
Now running at lightning fast speeds, the CU511B is able to transfer uncompressed video to your computer in high resolution at 60 fps.
Complete Input Support
Capture analog or digital sources without exceptions from component, composite, S-Video or HDMI; the CU511B captures the highest resolution. The versatile input port offerings set the CU511B from comparable solutions by supporting all analog or digital sources capturing without the use of additional adapters.
Portability Drives Integration
The small footprint and rugged design of the CU511B gives full portability to meet your space requirements. Designed for subtlety, you can setup in the smallest of places giving integration in any location the due priority. Ideal for situations on the go, medical carts, desktop, small corners, and much more.
Resolution Adjustment Tool
Cutting edge technology right in the box. The CU511B includes cutting edge technology for adjusting resolution. The application tool supports output positioning and pixel rates up to 162 MHz for full signal compatibility. The CU511B is specifically designed to provide flexibility to meet your industry requirements.
AVerMedia’s Resolution Adjustment Tool
In order to acquire video from any unique resolution, AVerMedia introduces software solution Resolution Adjustment Tool, which can dynamic generate resolution table to fit any video output sources such as the medical machines, support from 640x480 to [email protected] maximum.
The tool allows the users to capture hundreds of different resolutions as they needs.
Compatible hardware Input:
System Requirement :
Provide the Video Information:
Customize the Specific Resolution and the Capturing Position :
Proprietary Software Bundle
When complete control of image capturing, video recording processing and previewing are the focus, the CU511B is the right choice. CU511B is the perfect capture solution for those who require full control over the capturing, recording and previewing process. The included Capture Studio bundle allows for extensive flexibility to set image scaling, audio resampling and color space conversion for use in professional video capture settings.
The CU511B is a complete analog capturing solution supporting features to meet professional applications and comes with a customizable SDK for easy and seamless integration.
At a Glance:
