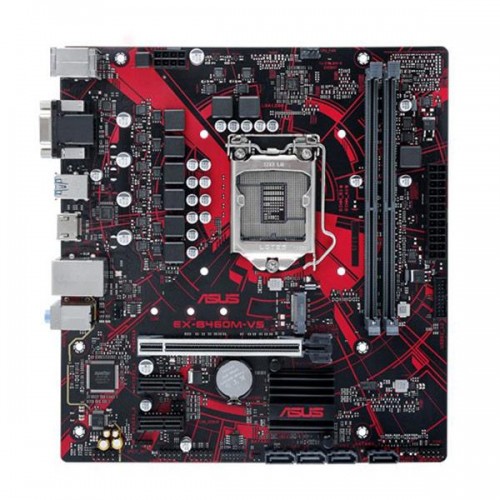

Asus EX-B460M-V5 LGA 1200 Intel B460 DDR4 Micro ATX Intel Desktop Motherboard en - No data

  • Brand: Asus
  • Model No: EX-B460M-V5
  • Reward Points: 10
  • Availability: In Stock
  • Shipping Free
₹9,100 Price in reward points: 10

Learn more about the Asus EX-B460M-V5

SPECIFICATIONS –

Model
Brand  ASUS
Model  EX-B460M-V5
Supported CPU
CPU Socket Type  LGA 1200
CPU Type  Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
Chipsets
North Bridge  Intel B460 Chipset
Memory
Number of Memory Slots  2 x DIMM,
Maximum Memory Supported  64GB
Expansion Slots
PCI Slots  Intel® 10th Gen Processors:1 x PCIe 3.0/2.0 x16, Intel® B460 Chipset:2 x PCIe 3.0 x1
Storage Devices
SATA 3Gb/s  N/A
Onboard Video
Onboard Video Chipset  N/A
Onboard Audio
Audio Channels  7.1-Channel High Definition Audio
Audio Chipset  Realtek� ALC887
Onboard LAN
LAN Chipset  1 x RTL8111H Gigabit LAN controller
Max LAN Speed  10/100/1000 Mbps
Rear Panel Ports
USB  4 x USB 3.2 Gen 1 (blue) Type-A, 2 x USB 2.0
Audio Ports  3 x audio jacks
HDMI  1 x HDMI
Onboard USB
Onboard USB  Available
Onboard 1394
Onboard 1394  N/A
Physical Spec
Form Factor  Micro ATX
Power Pin  24 Pin
Dimensions  8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm )



WARRANTY

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
