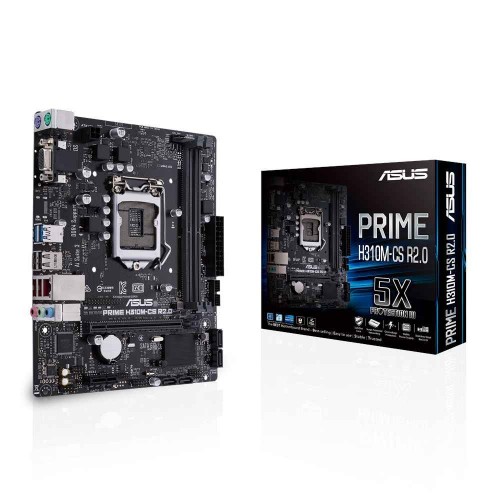

ASUS PRIME H310M-CS R2.0 LGA 1151 (300 SERIES) INTEL H310 MICRO ATX INTEL MOTHERBOARD en - No data

  • Brand: Asus
  • Model No: PRIME H310M-CS R2.0
  • Reward Points: 10
  • Availability: In Stock
  • Shipping Free
₹4,975 Price in reward points: 10

Learn more about the Asus PRIME H310M-CS R2.0

SPECIFICATIONS –

  • CPU

    Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list

  • Chipset

    Intel® H310

  • Memory

    2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * The maximum memory frequency supported varies by processor
    ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

  • Graphic

    Integrated Graphics Processor- Intel® HD Graphics support
    - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
    Maximum shared memory of 1024 MB (for iGPU exclusively)
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

  • Expansion Slots

    1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
    1 x PCIe 2.0 x1

  • Storage

    Intel® H310 Chipset :
    4 x SATA 6Gb/s port(s), gray,

  • LAN

    Realtek® RTL8111H, 1 x Gigabit LAN

  • Audio

    Realtek® ALC887 8-Channel High Definition Audio CODEC
    - Supports : Jack-detection, Front Panel Jack-retasking
    Audio Feature :
    - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

  • USB Ports

    Intel® H310 Chipset :
    4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
    Intel® H310 Chipset :
    6 x USB 2.0/1.1 port(s) (4 at back panel, , 2 at mid-board)

  • Special Features

    ASUS 5X Protection III :
    - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
    - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
    - ASUS Overvoltage Protection: World-class circuit-protecting power design
    - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    - ASUS DIGI+ VRM: 4 Phase digital power design
    ASUS OptiMem:
    - Optimem (Improved DDR4 stability)
    ASUS EPU :
    - EPU
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    - PC Cleaner
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution
    - ASUS Fan Xpert
    ASUS EZ DIY :
    - ASUS EZ Flash 3
    ASUS Q-Design :
    - ASUS Q-Slot
    - ASUS Q-DIMM

  • Back I/O Ports

    1 x PS/2 keyboard (purple)
    1 x PS/2 mouse (green)
    1 x D-Sub
    1 x LAN (RJ45) port(s)
    2 x USB 3.1 Gen 1 (blue) Type-A up to 5Gbps
    4 x USB 2.0
    3 x Audio jack(s)

  • Internal I/O Ports

    1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
    1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
    1 x LPT header
    1 x COM port(s) connector(s)
    4 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x Chassis Fan connector(s) (1 x 4 -pin)
    1 x 24-pin EATX Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x Clear CMOS jumper(s)
    1 x 14-1 pin TPM connector
    1 x System panel connector
    1 x Chassis intrusion header
    1 x Speaker connector

  • Accessories

    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x Supporting DVD

  • BIOS

    64Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, ASUS EZ Flash, Multi Language

  • Manageability

    WfM 2.0, DMI 2.0, WOL by PME, PXE

  • Operating System

    Windows® 10 64-bit

  • Form Factor

    mATX Form Factor
    8.4 inch x 7.0 inch ( 21.34 cm x 17.78 cm )



WARRANTY

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
