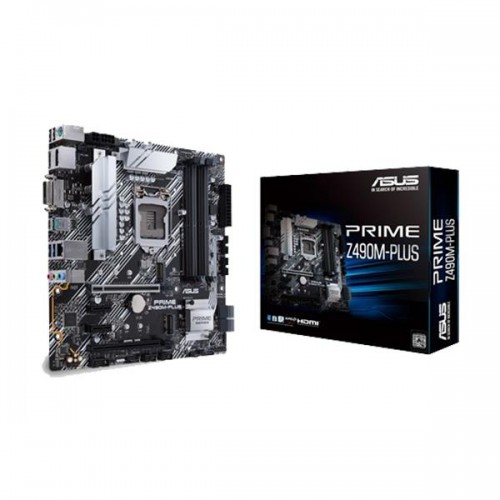

ASUS PRIME Z490M-PLUS LGA 1200 (Intel 10th Gen) Intel Z490 SATA 6Gb/s Dual M.2, USB 3.2 Gen 2 USB Type-A, Aura Sync RGB Micro ATX Motherboard en - No data

  • Brand: Asus
  • Model No: PRIME Z490M-PLUS
  • Reward Points: 10
  • Availability: In Stock
  • Shipping Free
₹15,825 Price in reward points: 10

Learn more about the Asus PRIME Z490M-PLUS

SPECIFICATIONS –

  • CPU

    Intel® Socket 1200 for 10th Gen Intel® Core, Pentium® Gold and Celeron® Processors *
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list
    **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

  • Chipset

    Intel® Z490

  • Memory

    4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/

           3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz

           Non-ECC, Un-buffered Memory *

  • Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem
    * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com

              for the Memory QVL (Qualified Vendors Lists).

  • Graphic

    Integrated Graphics Processor
    1 x DisplayPort 1.4 **
    1 x HDMI 1.4b
    1 x DVI-D
    *Graphics specifications may vary between CPU types.
    **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.

  • Multi-GPU Support

    Supports AMD 2-Way CrossFireX Technology

  • Expansion Slots

    Intel® 10th Gen Processors
    1 x PCIe 3.0 x16 (x16 mode) *1
    Intel® Z490 Chipset
    1 x PCIe 3.0 x16 (x4 mode)
    4 x PCIe 3.0 x1

  • Storage

    Total supports 2 x M.2 slots and 5 x SATA 6Gb/s ports
    Intel® Z490 Chipset :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
    5 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 5, 10
    Intel® Rapid Storage Technology supports
    Intel® Optane™ Memory Ready

  • LAN

    Intel® I219-V 1Gb Ethernet

  • Audio

    Realtek® ALC887 8-Channel High Definition Audio CODEC
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
    Audio Feature :
    - LED-illuminated design
    - Audio Shielding
    - Dedicated audio PCB layers
    - Premium Japanese audio capacitors

  • USB Ports

    Rear USB Port ( Total 6 )
    2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
    2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
    2 x USB 2.0 port(s)(2 x Type-A)
    Front USB Port ( Total 8 )
    4 x USB 3.2 Gen 1 port(s)
    4 x USB 2.0 port(s)

  • Software Features

    ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility EPU Digi+ VRM Fan Xpert 4 - EZ update AI Charger WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

  • ASUS Special Features

    ASUS 5X PROTECTION III - ASUS DIGI+ VRM (- Digital power design with Dr. MOS) - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - Procool

  • Back I/O Ports

    1 x PS/2 keyboard/mouse combo port(s)
    1 x DVI-D
    1 x DisplayPort
    1 x HDMI
    1 x LAN (RJ45) port(s)
    2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
    2 x USB 3.2 Gen 1 Type-A
    2 x USB 2.0
    3 x Audio jack(s)

  • Internal I/O Ports

    1 x CPU Fan connector(s)
    3 x Chassis Fan connector(s)
    1 x AIO_PUMP connector
    1 x Lighting Control RGB Strip Header(s)
    2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x SPI TPM header
    5 x SATA 6Gb/s connector(s)
    1 x S/PDIF out header(s)
    1 x 4-pin EATX 12 V Power connector
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin EATX 12V Power connectors
    1 x Front panel audio connector(s) (AAFP)
    1 x Clear CMOS jumper(s)
    1 x System panel connector
    1 x COM port header

  • Accessories

    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
    User manual

  • BIOS

    128 Mb Flash ROM, UEFI AMI BIOS

  • Manageability

    WOL by PME, PXE

  • Operating System

    Windows® 10 64-bit

  • Form Factor

    mATX Form Factor
    9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )



WARRANTY

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
