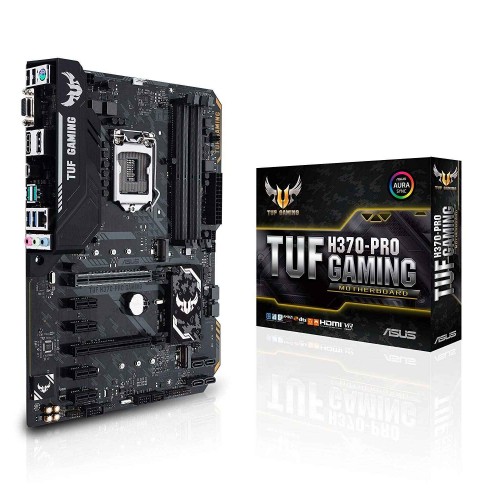

ASUS TUF H370-PRO GAMING LGA 1151 INTEL H370 ATX INTEL MOTHERBOARD en - No data

  • Brand: Asus
  • Model No: TUF H370-PRO GAMING
  • Reward Points: 10
  • Availability: In Stock
  • Shipping Free
₹11,200 Price in reward points: 10

Learn more about the Asus TUF H370-PRO GAMING

SPECIFICATIONS –

  • CPU

    Intel® Socket 1151 for 8th Generation Core Pentium®/Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

  • Chipset

    Intel® H370

  • Memory

    4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory *1
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * The maximum memory frequency supported varies by processor.

  • Graphic

    Integrated Graphics Processor- Intel® HD Graphics support
    Multi-VGA output support : HDMI/DisplayPort /D-Sub ports
    - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
    - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
    Maximum shared memory of 1024 MB (for iGPU exclusively)
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

  • Multi-GPU Support

    Supports AMD 2-Way CrossFireX Technology

  • Expansion Slots

    1 x PCIe 3.0/2.0 x16 (x16 mode)
    1 x PCIe 3.0/2.0 x16 (max at x4 mode)
    4 x PCIe 3.0/2.0 x1

  • Storage

    Intel® H370 Chipset :
    1 x M.2 Socket 3*2, , with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    6 x SATA 6Gb/s port(s), gray
    Support Raid 0, 1, 5, 10
    Intel® Rapid Storage Technology supports
    Intel® Optane™ Memory Ready

  • LAN

    Intel® I219V, 1 x Gigabit LAN Controller(s)
    ASUS Turbo LAN Utility
    TUF LANGuard

  • Audio

    Realtek® ALC887 8-Channel High Definition Audio CODEC
    - Supports : Jack-detection, Front Panel Jack-retasking
    Audio Feature :
    - Exclusive DTS Custom for GAMING Headsets.
    - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.

  • USB Ports

    Intel® H370 Chipset :
    2 x USB 3.1 Gen 2 port(s) (2 at back panel, )
    Intel® H370 Chipset :
    5 x USB 3.1 Gen 1 port(s) (3 at back panel, , Type-A + USB Type-CTM, 2 at mid-board)
    Intel® H370 Chipset :
    6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)

  • Special Features

    ASUS TUF PROTECTION
    - ASUS SafeSlot: Protect your graphics card Investment
    - ASUS ESD Guard: Enhanced ESD protection
    - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    - ASUS Overvoltage Protection: World-class circuit-protecting power design
    - ASUS DIGI + VRM: 4+2+1 Phase digital power design
    ASUS EPU :
    - EPU
    TUF ENGINE! Power Design :
    - TUF Components (Choke, Cap. & MOSFET; certified by military-standard)
    AURA :
    - Aura Lighting Control
    - Aura RGB Strip Headers
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution
    - ASUS Fan Xpert 4 Core
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    CPU Installation Tool
    - Three-step simplicity and safety
    ASUS Q-Design :
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM

  • Back I/O Ports

    1 x PS/2 keyboard/mouse combo port(s)
    1 x D-Sub
    1 x DisplayPort
    1 x HDMI
    1 x LAN (RJ45) port(s)
    1 x 5Gb/s port(s) USB Type-CTM
    2 x USB 3.1 Gen 2 (teal blue)Type-A,
    2 x USB 3.1 Gen 1 (blue) ,
    2 x USB 2.0
    3 x Audio jack(s)

  • Internal I/O Ports

    1 x Aura RGB Strip Header
    1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    1 x COM port(s) connector(s)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    2 x Chassis Fan connector(s) (2 x 4 -pin)
    1 x AIO_PUMP connector
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s) (Chassis intrusion header is inbuilt)
    1 x Clear CMOS jumper(s)

  • Accessories

    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x CPU installation tool
    1 x Supporting DVD
    1 x TUF Gaming Sticker
    1 x TUF Certification card(s)

  • BIOS

    128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

  • Manageability

    WfM 2.0, DMI 3.0, WOL by PME, PXE

  • Support Disc

    Drivers
    ASUS Utilities
    ASUS EZ Update
    Anti-virus software (OEM version)

  • Operating System

    Windows® 10 64-bit

  • Form Factor

    ATX Form Factor
    30.5 cm x 23.6 cm (12.0 x 9.29 )



WARRANTY

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
