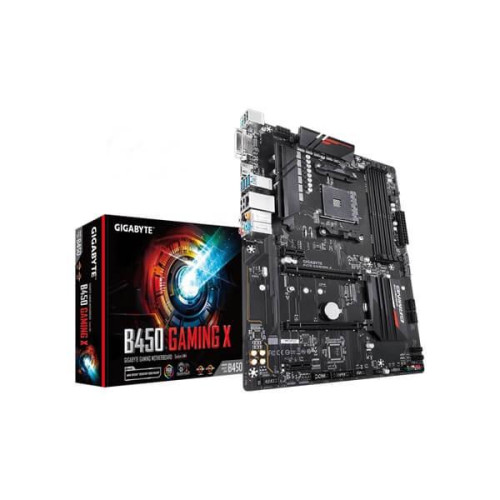

GIGABYTE B450 Gaming X AM4 AMD B450 SATA 6Gb/s ATX AMD Motherboard en - No data

  • Brand: Gigabyte
  • Model No: B450 Gaming X
  • Reward Points: 10
  • Availability: In Stock
  • Shipping Free
₹8,250 Price in reward points: 10

Learn more about the Gigabyte B450 Gaming X

SPECIFICATIONS –

Model

Brand

GIGABYTE

Model

B450 Gaming X



Supported CPU

CPU Socket Type

AM4

CPU Type

AM4 Socket:
AMD Ryzen 2nd Generation processors
AMD Ryzen with Radeon Vega Graphics processors
AMD Athlon with Radeon Vega Graphics processors
AMD Ryzen 1st Generation processors



Chipsets

Chipset

AMD B450



Memory

Number of Memory Slots

4×288pin

Memory Standard

DDR4 2933/ 2667/ 2400/ 2133

Maximum Memory Supported

64GB

Channel Supported

Dual Channel



Expansion Slots

PCI Express 3.0 x16

1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
** Actual support may vary by CPU.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)

PCI Express 2.0 x16

1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the PCIEX1_2 slot. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when the PCIEX1_2 is empty.

PCI Express x1

2 x PCI Express x1 slots
(The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)



Storage Devices

SATA 6Gb/s

6 x SATA 6Gb/s

M.2

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe 3.0 x4/x2 SSD support)

SATA RAID

0/1/10



Onboard Video

Onboard Video Chipset

Supported only by CPU with integrated graphic:

1 x DVI-D port, supporting a maximum resolution of [email protected]
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of [email protected]
* Support for HDMI 2.0 version and HDCP 2.2.
** Actual support may vary by CPU.

Maximum shared memory of 16GB



Onboard Audio

Audio Chipset

Realtek ALC892

Audio Channels

2/4/5.1/7.1-channel
Support for S/PDIF Out



Onboard LAN

LAN Chipset

Realtek GbE LAN chip

Max LAN Speed

10/100/1000Mbps



Rear Panel Ports

Back I/O Ports

1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
4 x USB 3.1 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks



Internal I/O Connectors

Onboard USB

1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header

Other Connectors

1 x CPU fan header
3 x system fan headers
1 x CPU cooler LED strip/RGB LED strip header
1 x RGB LED strip header
2 x addressable LED strip headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Trusted Platform Module (TPM) header (2x10-pin, for the GC-TPM2.0 module only)
1 x serial port header
1 x Clear CMOS jumper



Physical Spec

Form Factor

ATX

LED Lighting

RGB

Dimensions (W x L)

12.0" x 9.3"

Power Pin

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector



Features

Features

Multi-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

I/O Controller:
iTE I/O Controller Chip

H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS:
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
Smart Survey
System Information Viewer
USB Blocker
Support for Q-Flash
Support for Xpress Install

Bundled Software:
Norton Internet Security (OEM version)
Realtek 8118 Gaming LAN Bandwidth Control Utility

Operating System:
Support for Windows 10 64-bit
Support for Windows 7 64-bit
* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.



WARRANTY

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
