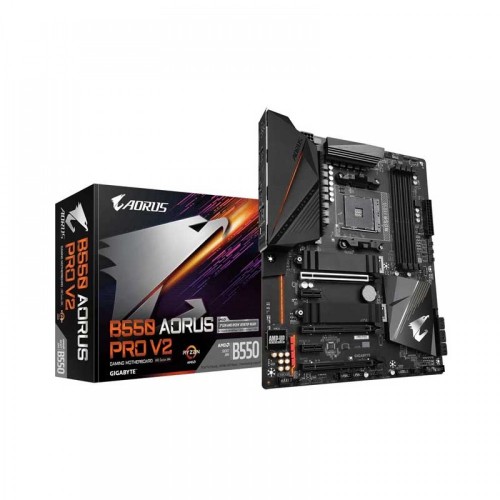

Gigabyte B550 AORUS PRO V2 AM4 Socket ATX Motherboard en - No data

  • Brand: Gigabyte
  • Model No: B550 AORUS PRO V2
  • Reward Points: 10
  • Availability: In Stock
  • Shipping Free
₹16,500 Price in reward points: 10

Learn more about the Gigabyte B550 AORUS PRO V2

SPECIFICATIONS –



Model

B550 AORUS PRO V2

CPU

AMD Socket AM4, support for : AMD Ryzen™ 5000 Series / 3rd Generation AMD Ryzen™ processors / 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors

(Please refer "CPU Support List" for more information.)

Chipset

AMD B550

Memory

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

AMD Ryzen™ 5000 series Processors:
Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules

3rd Gen AMD Ryzen™ Processors:
Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules

3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:

1 x HDMI port, supporting a maximum resolution of [email protected] Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GB

Audio

Realtek® ALC1220-VB codec
* The back panel line out jack supports DSD audio.

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit

Expansion Slots

1‎ x PCI Express x16 slot (PCIEX16), integrated in the CPU:

3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode

3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:

Supporting PCIe 3.0 x4 mode
* The M2B_SB connector shares bandwidth with the PCIEX4 slot. The PCIEX4 slot will become unavailable when an SSD is installed in the M2B_SB connectors.

1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:

Supporting PCIe 3.0 x2 mode
* The PCIEX2 slot shares bandwidth with the SATA3 4, 5 connectors. The PCIEX2 slot will become unavailable when a device is installed in the SATA3 4 or SATA3 5 connector.

2 x PCI Express x1 slots

Storage Interface

1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs

3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

support PCIe 3.0 x4/x2 SSDs

6 x SATA 6Gb/s connectors, integrated in the Chipset:

Support for RAID 0, RAID 1, and RAID 10

USB

CPU:

2 x USB 3.2 Gen 1 ports on the back panel

1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

Chipset:

1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support

1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header

1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

2 x USB 3.2 Gen 1 ports available through the internal USB header

2 x USB 2.0/1.1 ports on the back panel

Chipset+2 USB 2.0 Hubs:

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

2 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

2 x system fan/water cooling pump headers

1 x CPU cooler LED strip/RGB LED strip header

2 x addressable LED strip headers

2 x RGB LED strip headers

1 x front panel header

1 x front panel audio header

1 x USB Type-C™ port, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

2 x temperature sensor headers

1 x Clear CMOS jumper

Back Panel Connectors

1 x HDMI port

2 x USB 3.2 Gen 1 ports

1 x USB Type-C™ port, with USB 3.2 Gen 2 support

2 x USB 3.2 Gen 2 Type-A ports (red)

6 x USB 2.0/1.1 ports

1 x Q-Flash Plus button

1 x RJ-45 port

1 x optical S/PDIF Out connector

5 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Overheating warning

Fan fail warning

Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

Bundled Software

Norton® Internet Security (OEM version)

XSplit Gamecaster + Broadcaster (12 months license)

Realtek® 8125 Gaming LAN Bandwidth Control Utility

Operating System

Support for Windows 10 64-bit

Form Factor

ATX Form Factor; 30.5cm x 24.4cm



WARRANTY

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
