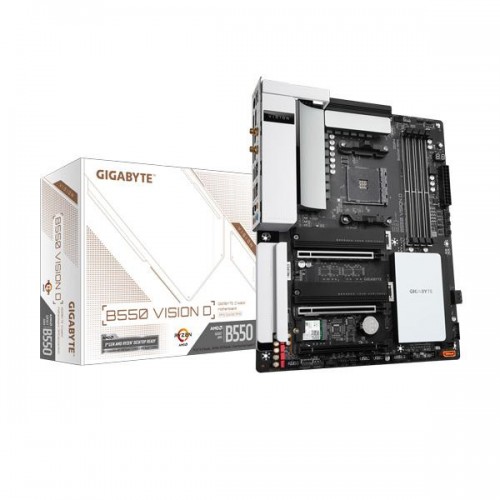

GIGABYTE B550 VISION D AM4 AMD B550 ATX with Dual M.2, SATA 6Gb/s, USB 3.2 Type-C with Thunderbolt 3, WIFI 6, Dual Intel GbE LAN, PCIe 4.0 Motherboard en - No data

  • Brand: Gigabyte
  • Model No: B550 VISION D
  • Reward Points: 10
  • Availability: In Stock
  • Shipping Free
₹26,400 Price in reward points: 10

Learn more about the Gigabyte B550 VISION D

SPECIFICATIONS –

Model

Brand

GIGABYTE

Model

B550 VISION D



Supported CPU

CPU Socket Type

AM4

CPU Type

AMD Socket AM4, support for: Ryzen 5000 Series / 3rd Generation AMD Ryzen processors/3rd Gen AMD Ryzen with Radeon Graphics processors
* Support for Ryzen 5000 Series with BIOS UPDATE. Refer to GIGABYTE website for CPU support list.



Chipsets

Chipset

AMD B550



Memory

Number of Memory Slots

4×288pin

Memory Standard

3rd Gen AMD Ryzen Processors: Support for DDR4 5200(O.C.)/ 5000(O.C.)/ 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
New Generation AMD Ryzen with Radeon Graphics processors: Support for DDR4 5400(O.C.)/ 5200(O.C.)/ 5000(O.C.)/ 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules

Maximum Memory Supported

128GB

Channel Supported

Dual Channel



Expansion Slots

PCI Express 4.0 x16

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
3rd Generation AMD Ryzen processors support PCIe 4.0 x8 mode
3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x8 mode
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.

PCI Express 3.0 x16

1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
Supporting PCIe 3.0 x4 mode
* The PCIEX4 slot shares bandwidth with the M2B_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SB connector.



Storage Devices

SATA 6Gb/s

4 x SATA 6Gb/s

M.2

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
Supporting SATA and PCIe 3.0 x4/x2 SSDs

SATA RAID

0/1/10



Onboard Video

Onboard Video Chipset

Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors+Intel Titan Ridge Controller:
2 x USB Type-C ports with Titan Ridge, supporting DisplayPort video outputs and a maximum resolution of [email protected] Hz with 24 bpp
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:
1 x HDMI port, supporting a maximum resolution of [email protected] Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16GB



Onboard Audio

Audio Chipset

Realtek ALC1220-VB codec
* The back panel line out jack supports DSD audio.

Audio Channels

2/4/5.1/7.1-channel
Support for S/PDIF Out



Onboard LAN

LAN Chipset

2 x Intel GbE LAN chips

Max LAN Speed

Dual 10/100/1000Mbps

Wireless LAN

Intel Wi-Fi 6 AX200
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.

Bluetooth

BLUETOOTH 5



Rear Panel Ports

Back I/O Ports

1 x PS/2 keyboard/mouse port
1 x DisplayPort In port
1 x HDMI port
2 x SMA antenna connectors (2T2R)
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB Type-C ports with Titan Ridge (USB 3.2 Gen2 support)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks



Internal I/O Connectors

Onboard USB

1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers

Other Connectors

1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
1 x SATA DOM power connector
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
2 x temperature sensor headers
1 x Q-Flash Plus button



Physical Spec

Form Factor

ATX

LED Lighting

RGB

Dimensions (W x L)

12.0" x 9.6"

Power Pin

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector



Features

Features

Multi-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

I/O Controller:
iTE I/O Controller Chip

H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

Bundled Software:
Norton Internet Security (OEM version)
cFosSpeed

Operating System:
Support for Windows 10 64-bit



WARRANTY

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
