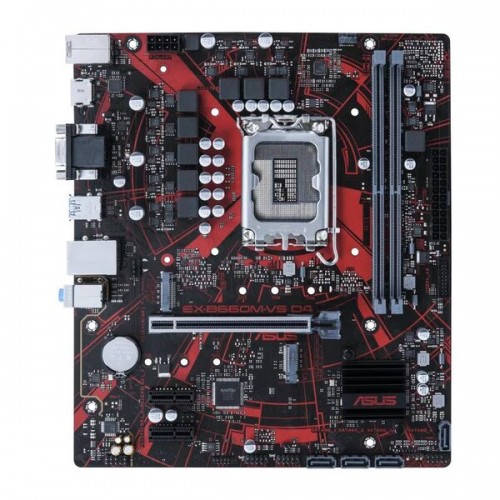

Asus EX-B660M-V5 D4 Socket 1700 12th Generation Micro ATX Intel Motherboard en - No data
- Brand: Asus
- Model No: EX-B660M-V5
- Reward Points: 10
- Availability: In Stock
- Shipping Free
₹11,300
Price in reward points: 10
Learn more about the Asus EX-B660M-V5
SPECIFICATIONS –
| CPU | |
| Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* | |
| Supports Intel ® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** | |
| ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Intel® B660 Chipset |
| Memory | |
| 2 x DIMM, Max. 64GB, DDR4 | |
|
5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/ 4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/ 2800/2666/2400/2133 Non-ECC, Un-buffered Memory* |
|
| Dual Channel Memory Architecture | |
| Supports Intel® Extreme Memory Profile (XMP) | |
| Graphics | |
| 1 x D-Sub port | |
| 1 x HDMI® port** | |
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |
| ** Supports [email protected] as specified in HDMI 2.1. | |
| Expansion Slots | |
| Intel® 12th Gen Processors | |
| 1 x PCIe 4.0/3.0 x16 slot | |
| Intel® B660 Chipset | |
| 2 x PCIe 3.0 x1 slots | |
| Storage | |
| Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* | |
| Intel® 12th Gen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 | |
| - Intel® 12th Gen processors support PCIe 4.0 x4 mode. | |
| Intel® B660 Chipset** | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports | |
| * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. | |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| USB | |
| Rear USB (Total 6 ports) | |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| Front USB (Total 6 ports) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Audio | |
| Realtek 7.1 Surround Sound High Definition Audio CODEC* | |
| Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - Supports up to 24-Bit/192 kHz playback | |
| Audio Features | |
| Premium Audio capacitors | |
| Audio Shielding | |
| Dedicated Audio PCB layers | |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
| Back Panel I/O Ports | |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| 1 x D-Sub port | |
| 1 x HDMI® port | |
| 3 x Audio jacks | |
| 1 x Realtek 1Gb Ethernet port | |
| 1 x PS/2 Keyboard/Mouse combo port | |
| Internal I/O Connectors | |
| Fan and cooling related | |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin Chassis Fan header | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| Storage related | |
| 2x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 1 x Clear CMOS header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x Speaker header | |
| 1 x 10-1 pin System Panel header | |
| Special Features | |
| ASUS 5X PROTECTION III | |
| DIGI+ VRM | |
| LANGuard | |
| Overvoltage Protection | |
| - SafeSlot Core+ | |
| Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| Q-DIMM | |
| Q-Slot | |
| ASUS EZ DIY | |
| ProCool | |
| Non-stop Action | |
| Lightning Boot | |
| Non-stop Challenger | |
| ASUS iCafe labs certified | |
| Non-stop Durability | |
| Luminous Anti-moisture coating | |
| USBGuard | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | |
| Cables | |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x I/O Shield | |
| 2 x M.2 Anchors | |
| Installation Media | |
| 1 x Support DVD | |
| Documentation 1 x User guide | |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | |
| mATX Form Factor | |
| 9.6 inch x 8.3 inch(24.4cm x 21.1cm) | |
WARRANTY
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
