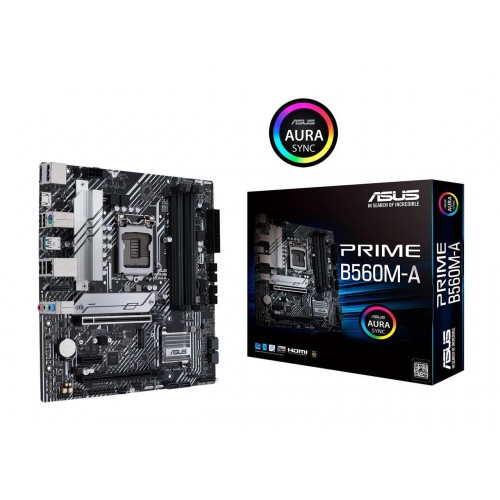

ASUS PRIME B560M-A LGA 1200 Intel B560 SATA 6Gb/s Micro ATX Intel Motherboard - PRIME B560M-A en - No data
- Brand: Asus
- Model No: PRIME B560M-A
- Reward Points: 10
- Availability: In Stock
- Shipping Free
₹10,950
Price in reward points: 10
Learn more about the Asus PRIME B560M-A
SPECIFIATIONS –
| CPU | Supports Intel® 14 nm CPU |
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** | |
| * Refer to www.asus.com for CPU support list. | |
| ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Intel® B560 Chipset |
| Memory | DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/ |
| 4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/ | |
| 3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* | |
| Dual Channel Memory Architecture | |
| Supports Intel® Extreme Memory Profile (XMP) | |
| OptiMem II | |
| * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. | |
| * 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively. | |
| * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. | |
| Graphics | 1 x HDMI™ 2.0** |
| * Graphics specifications may vary between CPU types. | |
| ** Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates. | |
| *** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of [email protected], others will only support HDMI™ 1.4 with max. resolution of [email protected] .Please refer to www.intel.com for any updates. | |
| Expansion Slots | Intel® 11th &10th Gen Processors |
| 1 x PCIe 4.0/3.0 x16 slot(s)* | |
| - Intel® 11th Gen processors support PCIe 4.0 x16 | |
| - Intel®10th Gen processors support PCIe 3.0 x16 | |
| Intel® B560 Chipset | |
| 1 x PCIe 3.0 x16 slot (supports x4 mode)* | |
| 1 x PCIe 3.0 x1 slots | |
| * Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory. | |
| Storage | Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports |
| Intel®11th Gen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 | |
| - Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs | |
| Intel® B560 Chipset | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* | |
| 6 x SATA 6Gb/s ports | |
| * M.2_2 slot shares bandwidth with SATA_2.When M.2_2 slot is operating in SATA mode, SATA_2 will be disabled. | |
| Ethernet | 1 x Intel® I219-LM 1Gb Ethernet |
| ASUS LANGuard | |
| ASUS LANGuard | |
| Wireless & Bluetooth | V-M.2 slot only (Key E, CNVi & PCIe)* |
| * Wi-Fi module and vertical M.2 Key E bracket set are purchased separately. | |
| USB | Rear USB:Total 6 ports |
| 2 x USB 3.2 Gen 2 port(s) (1 x Type-A + 1 x USB Type-C®) | |
| 4 x USB 2.0 port(s) (4 x Type-A) | |
| 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports | |
| 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports | |
| 1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports | |
| Audio | - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| - Supports up to 24-Bit/192 kHz playback" | |
| Audio Features | |
| - Audio Shielding | |
| - Premium Japanese audio capacitors | |
| - Dedicated audio PCB layers | |
| ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 port(s) (1 x Type-A, 1 x USB Type-C®) |
| 4 x USB 2.0 port(s) (4 x Type-A) | |
| 1 x DisplayPort | |
| 2 x HDMI™ port | |
| 1 x Intel® I219-V 1Gb Ethernet port | |
| 1 x V-M.2 slot (Key E) | |
| 3 x Audio jacks | |
| 1 x PS/2 Keyboard/Mouse combo port | |
| Intrernal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header(s) | |
| 1 x 4-pin CPU OPT Fan header(s) | |
| 2 x 4-pin Chassis Fan header(s) | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| Storage related | |
| 2 x M.2 slots (Key M) | |
| 6 x SATA 6Gb/s ports | |
| USB | |
| 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen1 ports | |
| 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports | |
| 1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports | |
| Miscellaneous | |
| 2 x AURA Addressable Gen 2 header(s) | |
| 2 x AURA RGB header(s) | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x LPT header | |
| 1 x S/PDIF Out header | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| Special Features | ASUS 5X PROTECTION III |
| - DIGI+ VRM | |
| - Enhanced DRAM Overcurrent Protection | |
| - ESD Guards | |
| - LANGuard | |
| - Overvoltage Protection | |
| - SafeSlot Core+ | |
| - Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| - Q-DIMM | |
| - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| - Q-Slot | |
| ASUS Thermal Solution | |
| - Flexible M.2 heatsink | |
| - VRM heatsink design | |
| AURA Sync | |
| - AURA RGB header(s) | |
| - Addressable Gen 2 RGB header(s) | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| - AURA Creator | |
| - AURA Sync | |
| AI Suite 3 | |
| - Performance And Power Saving Utility | |
| TurboV EVO | |
| EPU | |
| Digi+ VRM | |
| Fan Xpert 2+ | |
| - EZ update | |
| ASUS CPU-Z | |
| AI Charger | |
| DAEMON Tools | |
| Norton Anti-virus software (Free Trial version) | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x M.2 Rubber Package(s) | |
| 1 x M.2 SSD screw package(s) | |
| 1 x Vertical M.2 Key E bracket set | |
| Installation Media | |
| 1 x Support DVD | |
| Documentation | |
| 1 x User manual | |
| Operating System | Windows 10 64bit |
| Form Factor | microATX |
| 24.4cm x 23.4cm |
WARRANTY
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
