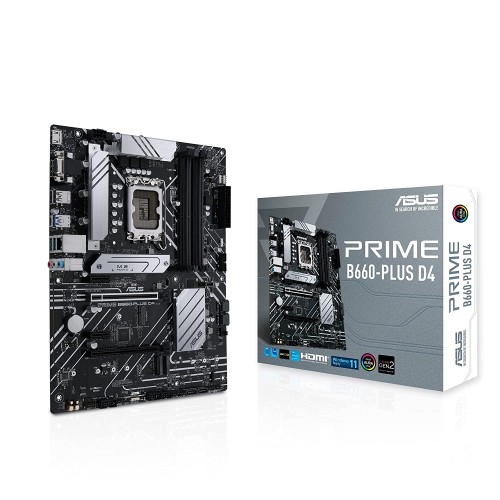

ASUS PRIME B660 PLUS D4 LGA 1700 Intel 12th Gen ATX Motherboard en - No data

  • Brand: Asus
  • Model No: PRIME B660-PLUS D4
  • Reward Points: 10
  • Availability: In Stock
  • Shipping Free
₹14,000 Price in reward points: 10

Learn more about the Asus PRIME B660-PLUS D4


Brand ASUS
Model PRIME B660-PLUS D4
Supported CPU
CPU Socket Type  LGA 1700
  * Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets.
CPU Type Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors
  * Refer to for CPU support list.
Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
  * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset  Intel B660
Onboard Video
Onboard Video Chipset  Supported only by CPU with integrated graphic
Number of Memory Slots 4x288pin (DDR4)
Memory Standard DDR4 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133*
  *Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported 128GB
Channel Supported  Dual Channel
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express 4.0 x16
  * Actual support may vary by CPU.
PCI Express 3.0 x16 1 x PCI Express 3.0 x16
  * Supports x4 mode.
PCI Express x1 2 x PCIe 3.0 x1
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 Intel 12th Gen Processors:
  M.2_1 slot (Key M), type 2242/2260/2280
  - Intel 12th Gen processors support PCIe 4.0 x4 mode.
Intel B660 Chipset:
  M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)*
  M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
  * Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Intel Optane Ready Yes
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset  Realtek 7.1 Surround Sound High Definition Audio CODEC*
  * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels  7.1 Channels
Onboard LAN
LAN Chipset Realtek 2.5Gb Ethernet
Max LAN Speed 10/100/1000/2500Mbps
Rear Panel Ports
Back I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
  2 x USB 3.2 Gen 2 ports (2 x Type-A)
  1 x USB 3.2 Gen 1 port (1 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  1 x DisplayPort
  1 x D-Sub port
  1 x HDMI port
  1 x Realtek 2.5Gb Ethernet port
  3 x Audio jacks
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin AIO Pump header
  3 x 4-pin Chassis Fan headers
  3 x Addressable Gen 2 headers
  2 x AURA RGB headers
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x M.2 slot (Key E)
  1 x S/PDIF Out header
  1 x SPI TPM header (14-1pin)
  1 x 20-3 pin System Panel header with Chassis intrude function
  1 x Thunderbolt header
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0" x 9.6"
Power Pin 1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
Windows Compatibility
Windows 11 Supported
Features Special Features:
   Enhanced DRAM Overcurrent Protection
   ESD Guards
   Overvoltage Protection
  - SafeSlot Core+
   Stainless-Steel Back I/O
  ASUS Q-Design
  - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  ASUS Thermal Solution
   M.2 heatsink
   VRM heatsink design
  AURA Sync
   AURA RGB headers
  - Addressable Gen 2 headers
Software Features:
  ASUS Exclusive Software
  Armoury Crate
   AURA Creator
   AURA Sync
  - Fan Xpert 2+
  AI Suite 3
   Performance And power Saving Utility
  TurboV EVO
  Norton Anti-virus software (Free Trial version)
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  128 Mb Flash ROM, UEFI AMI BIOS
Operating System:
  Windows 11 64-bit, Windows 10 64-bit



  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
