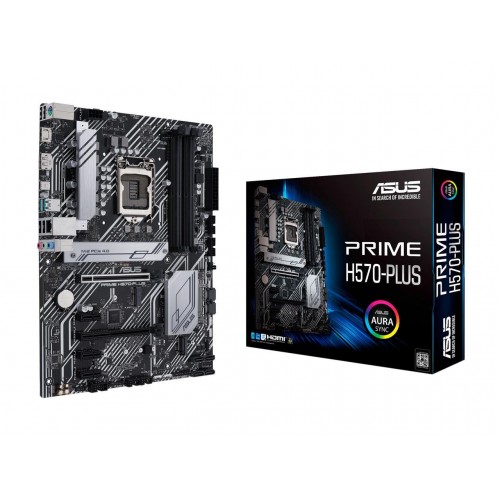

ASUS PRIME H570-PLUS LGA 1200 Intel H570 SATA 6Gb/s ATX Intel Motherboard - PRIME H570-PLUS

ASUS PRIME H570-PLUS LGA 1200 Intel H570 SATA 6Gb/s ATX Intel Motherboard - PRIME H570-PLUS

₹12,300
Price in reward points: 10
  • Brand: Asus
  • Model No: PRIME H570-PLUS
  • Reward Points: 10
  • Availability: In Stock
  • Shipping Free

Learn more about the Asus PRIME H570-PLUS

SPECIFICATIONS –



CPU Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  Supports Intel® 14nm CPU
  Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*
  * Refer to www.asus.com for CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
Chipset H570
Memory
4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/
  3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800
  /2666/2400/2133 MHz Non-ECC, Un-buffered memory*
  Dual channel memory architecture
  Supports Intel® Extreme Memory Profile (XMP)
  ASUS OptiMem
  * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.
  * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz.
  Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.


Graphics
1 x DisplayPort 1.4
  1 x HDMI 1.4/2.0***
  *Graphics specifications may vary between CPU types.
  ** For Intel® 11th & 10th processors, support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
  ***Only Intel® 11thprocessors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
Expansion Slots Intel® 11th &10th Gen Processors
  1 x PCIe 4.0/3.0 x16 slot*
  - Intel® 11th processors support PCIe 4.0 x16
  - Intel®10th processors support PCIe 3.0 x16
  Intel® H570 Chipset
  1 x PCIe 3.0 x16 slot (max. at x4 mode)*
  3 x PCIe 3.0 x1 slots
Storage Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
  Intel® 11th Gen Processors
  M.2_1 slot (Key M), type 2242/2260/2280/22110
  -Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
  Intel® H570 Chipset
  - M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode modes)*
  - 6 x SATA 6Gb/s ports
  Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
  To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
  *When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used.
Ethernet 1 x Intel® I219-V 1Gb Ethernet

  ASUS LANGuard
Wireless & Bluetooth M.2 slot only (Key E, CNVi & PCIe)
USB Rear USB:Total 7 ports
  2 x USB 3.2 Gen 2 ports (2 x Type-A)
  1x USB 3.2 Gen 2 port (1 x USB Type-C®)
  4 x USB 2.0 ports (4 x Type-A)

  Front USB:Total 8 ports
  2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC*
  - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - Supports up to 24-Bit/192 kHz playback"
  Audio Features
  - Audio Shielding
  - Premium Japanese audio capacitors
  - Dedicated audio PCB layers
  * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
  **A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.
Back Panel I/O Ports 1 x DP port
  1 x HDMI port
  3 x Audio jacks
  1 x PS/2 Keyboard/Mouse combo port
  1 x Intel® I219-V port
  4 x USB 2.0 ports (4 x Type-A)
  2 x USB 3.2 Gen 2 ports (2 x Type-A)
  1x USB 3.2 Gen 2 port (1 x USB Type-C®)
Intrernal I/O Connectors Fan and cooling-related
  1 x 4-pin CPU Fan header
  1 x 4-pin AIO Pump header
  3 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  2 x M.2 slots (Key M)
  6 x SATA 6Gb/s ports
  USB
  2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports
  Miscellaneous
  2 x AURA Addressable Gen 2 headers
  2 x AURA RGB headers
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x S/PDIF out header
  1 x 20-3pin System Panel header with Chassis intrude function
  1 x 14-1 pin SPI TPM header
  1X M.2 slot (Key E)
  1 x Thunderbolt 4 header
Special Features
  ASUS 5X PROTECTION III
  - ASUS DIGI+VRM
  - ASUS LANGuard
  - ASUS Overvoltage Protection
  - ASUS SafeSlot Core+
  - ASUS Stainless-Steel Back I/O
  ASUS Q-Design:
  - ASUS Q-DIMM
  - ASUS Q-Slot
  ASUS Thermal Solution
  - Flexible M.2 heatsink
  - VRM heatsink design
  ASUS EZ DIY
  - Box Headers
  AURA SYNC
  - AURA RGB headers
  - Addressable Gen 2 RGB headers
Software Features ASUS Exclusive Software:
  Armoury Crate
  AI Suite 3
  -Performance And Power Saving Utility
  TurboV EVO
  Digi+ VRM
  EPU
  Fan Xpert 2+
  - EZ update
  AI Charger
  ASUS CPU-Z
  DAEMON Tools
  Norton Anti-virus software(Free Trial for 60 days)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
BIOS 194Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x M.2 Rubber Package
  1 x IO Shield
  1 x M.2 SSD screw package
  1 x M.2 Key E screw package
  Installation Media
  1 x Supporting DVD
  Documentation
  1 x User's manual
Operating System Windows® 10 64-bit
Form Factor ATX
  30.5cm x 23.4cm



WARRANTY

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
