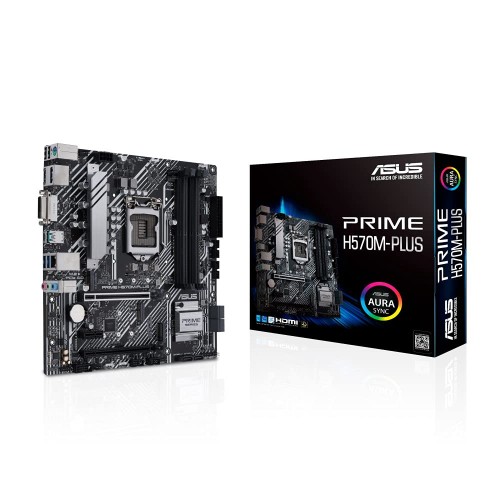

ASUS PRIME H570M-PLUS Intel H570 Micro ATX Motherboard - PRIME H570M-PLUS
Learn more about the Asus PRIME H570M-PLUS
Features
Intel® H570 (LGA 1200) micro ATX motherboard with PCIe® 4.0, 8 power stages, DisplayPort™, HDMI®, DVI, SATA 6 Gbps, USB 3.2 Gen 2 Type-C®, Intel® 1 Gb Ethernet, Thunderbolt™ 4 header support, and Aura Sync RGB lighting
- Intel LGA 1200 socket: Ready for 11th and 10th gen Intel Core™ processors
- Enhanced power solution: 8 power stages, alloy chokes and durable capacitors for stable power delivery
- Comprehensive cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
- Ultrafast connectivity: PCIe 4.0, Dual M.2, Intel 1 Gb Ethernet, USB 3.2 Gen 2 Type-C and Thunderbolt™ 4 header support
SPECIFICATIONS –
| CPU | Intel Socket 1200 for 10th and 11th Gen Intel Processors |
| Chipset | Intel H570 |
| Memory | 4x DIMM, 128GB max, DDR4 up to 4600+(OC) MHz Non-ECC, Un-buffered Memory * |
| Graphics | Intel UHD Graphics support † |
| Multi-VGA output support | DisplayPort 1.4 / HDMI (2.0 for 11th Gen, 1.4 for 10th Gen) and DVI-D |
| DisplayPort (1.4) Resolution | 4096 x 2304 @ 60 Hz |
| HDMI 2.0 Resolution | 4096 x 2160 @ 60 Hz (11th Gen CPU) |
| HDMI 1.4 Resolution | 4096 x 2160 @ 30 Hz (10th Gen CPU) |
| Expansion Slots | 1x PCIe 4.0 x16 (x16), 1x PCIe 2.0 x16 (x4), 1x PCIe x1 ‡ |
| First M.2 Socket | M.2_1 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 4.0 x4 ) ** |
| Second M.2 Socket | M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode modes) †† |
| SATA 6Gb/s ports | 6 |
| RAID Support | 0, 1, 5 |
| LAN | Intel I219-V 1Gb Ethernet with ASUS LANGuard |
| Wireless Communication | M.2 slot only, Key E, CNVi & PCIe (available separately) |
| Audio CODEC | Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC |
| Rear USB Ports | 2x USB 2.0 ports (black), 2x USB 3.1 Gen2 (teal, x1 Type-C), 2x USB 3.2 Gen1 (blue) |
| USB Port Motherboard headers | 1x USB 3.2 Gen 1 header (for 1x Type-C), 1x USB 3.2 Gen 1 header (2 ports), 1x USB 2.0 headers (2 ports) |
| Back I/O Ports (ex USB ports) | PS2 combo port, Display Port, HDMI, LAN, 3x Audio jacks |
| Accessories | 2x SATA 6Gb/s cables, I/O Shield, M.2 SSD screw package, M.2 Key E screw package, Support DVD, |
| Form Factor | Micro-ATX, 244 x 244 mm |
| Trust Platform Module (TPM) compatible | Yes |
| Thunderbolt support | Yes |
WARRANTY
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
