CPU | Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® ProcessorsSupports Intel® 14 nm CPUSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
Chipset | Intel® Z590 Chipset |
Memory |
4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC) /4500(OC)/4400(OC) |
/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC) /3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666 /2400/2133 MHz Non-ECC, Un-buffered Memory* |
|
Dual Channel Memory Architecture | |
Supports Intel® | |
Extreme Memory Profile (XMP) | |
OptiMem III | |
* 10th Gen Intel® | |
Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. | |
* 11th Gen Intel® | |
Core™ processors support 3200/2933/2800/2666/2400/2133 natively. | |
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | |
Graphics | 1 x DisplayPort 1.4** |
1 x HDMITM 2.0*** | |
* Graphics specifications may vary between CPU types. | |
** Only Intel® | |
11th Core™ processors support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others will only support DisplayPort 1.4 with max. resolution of 4096 x 2304 | |
@60Hz. Please refer to www.intel.com for any updates | |
*** Only Intel® | |
11th Core™ processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz | |
Expansion Slots | Intel® |
11th &10th Gen Processors | |
2 x PCIe 4.0/3.0 x16 slot(s)* | |
- Intel® | |
11th processors support PCIe 4.0 x16 or x8/x8 or x8/x4 mode(s) | |
- Intel® | |
10th processors support PCIe 3.0 x16 or x8/x8 or x8/x4 mode(s) | |
Intel® | |
Z590 Chipset | |
1 x PCIe 3.0 x16 slot (supports x4 mode)** | |
* Support PCIe bandwidth bifurcation for RAID on CPU function. | |
**PCIe16_3 shares bandwidth with SATA_56. When PCIe16_ 3 is populated SATA_56 will be disabled. | |
When PCIe16_3 run at default x2 mode, SATA_56 is enabled. | |
Multi-GPU Support | Supports NVIDIA 2-Way SLI® Technology |
Storage | Total supports 4 x M.2 slots and 6 x SATA 6Gb/s ports |
Intel® | |
11th &10th Gen Processors* | |
M.2_1 slot (Key M), type 2242/2260/2280/22110 | |
- Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs | |
M.2_2 slot (Key M), type 2242/2260/2280/22110 | |
- Intel® | |
11th processors support PCIe 4.0 x4 mode | |
- Intel® | |
10th processors support PCIe 3.0 x4 mode | |
Intel® | |
Z590 Chipset | |
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode) | |
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* | |
6 x SATA 6Gb/s ports | |
Raid function in Intel® | |
Rapid Storage Technology is available with either 1. Intel® | |
SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in | |
PCH-attached slots. | |
To enable Intel® | |
Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® | |
Rapid Storage Technology. | |
*When M.2_4 is operating in SATA device, SATA6G_2 will be disabled. | |
Ethernet | 2 x Intel® I225-V 2.5Gb EthernetASUS LANGuard |
Wireless & Bluetooth | Intel®Wi-Fi 6E |
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | |
Supports 2.4/5/6GHz frequency band* | |
Bluetooth v5.2 hardware ready** | |
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 10 build 21H1 or later. | |
** Bluetooth v5.2 function will be ready in Windows 10 build 21H1 or late | |
USB | Rear USB (Total 10 ports) |
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) | |
3 x USB 3.2 Gen 2 port (2 x Type-A, 1 x USB Type-C®) | |
4 x USB 3.2 Gen 1 port (4 x Type-A) | |
2 x USB 2.0 port(s) (2 x Type-A) | |
Front USB (Total 7 ports) | |
1 x USB 3.2 Gen 2x2 connector(s) (suppport(s) USB Type-C®) | |
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports | |
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports | |
Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
- Impedance sense for front and rear headphone outputs | |
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input | |
- Supports up to 32-Bit/384 kHz playback | |
Audio Features | |
- SupremeFX Shielding Technology | |
- ALC4080 + Savitech SV3H712 AMP | |
- Gold-plated audio jacks | |
- Rear optical S/PDIF out port | |
- Premium Japanese audio capacitors | |
- Audio cover | |
Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) |
3 x USB 3.2 Gen 2 port(s) (2 x Type-A, 1 x USB Type-C®) | |
4 x USB 3.2 Gen 1 port(s) (4 x Type-A) | |
2 x USB 2.0 port(s) (2 x Type-A) | |
1 x HDMI™ port | |
1 x DisplayPort | |
1 x Intel® | |
Wi-Fi 6E | |
2 x Intel® | |
I225-V 2.5Gb Ethernet | |
5 x Gold-plated audio jacks | |
1 x Optical S/PDIF out port | |
1 x BIOS FlashBack™ button | |
1 x Clear CMOS button | |
Internal I/O Connectors | Fan and Cooling related |
1 x 4-pin CPU Fan header(s) | |
1 x 4-pin CPU OPT Fan header(s) | |
1 x 4-pin AIO Pump header(s) | |
Back Panel I/O Ports | |

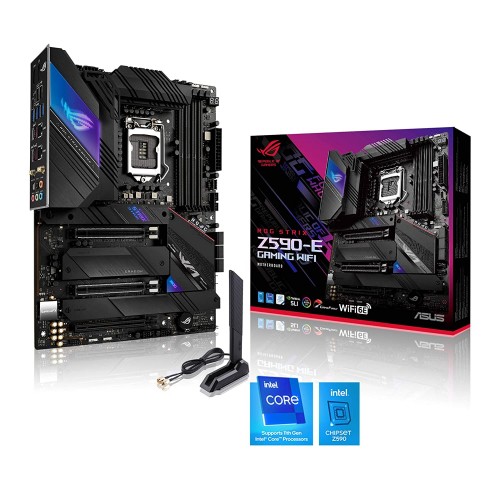

ROG STRIX Z590-E GAMING WIFI_One Page Spec | |
Note: The specifications are subject to change without notice. | |
CPU | |
Memory | |
Ethernet | |
USB | |
Audio | |
Graphics | |
Storage | |
Expansion Slots | |
3 x 4-pin Chassis Fan header(s) | |
1 x VRM heatsink Fan header | |
1 x W_PUMP+ header | |
Power related | |
1 x 24-pin Main Power connector | |
1 x 8-pin +12V Power connector | |
1 x 4-pin +12V Power connector | |
Storage related | |
4 x M.2 slots (Key M) | |
6 x SATA 6Gb/s ports | |
USB | |
1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C® | |
) | |
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports | |
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports | |
Miscellaneous | |
3 x AURA Addressable Gen 2 header(s) | |
1 x AURA RGB header(s) | |
1 x CPU Over Voltage jumper | |
1 x Front Panel Audio header (AAFP) | |
1 x Q Code | |
1 x SPI TPM header (14-1pin) | |
1 x 20-3 pin System Panel header with Chassis intrude function | |
1 x Thermal Sensor header | |
1 x Thunderbolt header | |
Special Features | Extreme Engine Digi+ |
- 5K Black Metallic Capacitors | |
ASUS Q-Design | |
- M.2 Q-Latch | |
- Q-Code | |
- Q-DIMM | |
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
- Q-Slot | |
ASUS Thermal Solution | |
- M.2 heatsink backplate | |
- M.2 heatsink | |
- VRM heatsink design | |
ASUS EZ DIY | |
- BIOS FlashBack™ button | |
- BIOS FlashBack™ LED | |
- Clear CMOS button | |
- ProCool II | |
- Pre-mounted I/O shield | |
- SafeSlot | |
AURA Sync | |
- AURA RGB header(s) | |
- Addressable Gen 2 RGB header(s) | |
ASUS HYDRANODE | |
- 1 x Chassis fan support* (CHA_FAN1P) | |
* Visit ASUS Website for the latest compatibility list. | |
Software Features | ROG Exclusive Software |
- RAMCache III | |
- ROG CPU-Z | |
- GameFirst VI | |
- Sonic Studio III + Sonic Studio Virtual Mixer | |
- Sonic Radar III | |
- DTS® | |
Sound Unbound | |
- Overwolf | |
- Anti-virus software | |
ASUS Exclusive Software | |
Armoury Crate | |
-AIDA64 Extreme (60 days free trial) | |
- AURA Creator | |
- AURA Sync | |
- Two-Way AI Noise Cancelation | |
AI Suite 3 | |
- 5-Way Optimization with AI Overclocking | |
TPU | |
EPU | |
DIGI+ VRM | |
Fan Xpert 4 | |
Turbo app | |
- EZ update | |
DAEMON Tools | |
MyAsus | |
WinRAR | |
UEFI BIOS | |
AI Overclocking Guide | |
ASUS EZ DIY | |
- ASUS CrashFree BIOS 3 | |
- ASUS EZ Flash 3 | |
- ASUS UEFI BIOS EZ Mode | |
FlexKey | |
MemTest86 | |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |
Accessories | Cables |
4 x SATA 6Gb/s cables | |
Additional Cooling Kit | |
1 x Assistant fan (40mm) | |
1 x Screw package for cooling kit | |
Miscellaneous | |
1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas | |
1 x M.2 Q-Latch package | |
2 x M.2 Rubber Packages | |
1 x ROG key chain | |
1 x cable tie | |
1 x ROG Graphics card holder | |
Internal I/O Connectors | |
Special Features | |
Accessories | |
Software Features | |
1 x ROG STRIX stickers | |
1 x ROG STRIX thank you card | |
Installation Media | |
1 x Support DVD | |
Documentation | |
1 x User manual | |
Operating System | Windows® |
10 64-bit | |
Form Factor | ATX Form Factor |
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
