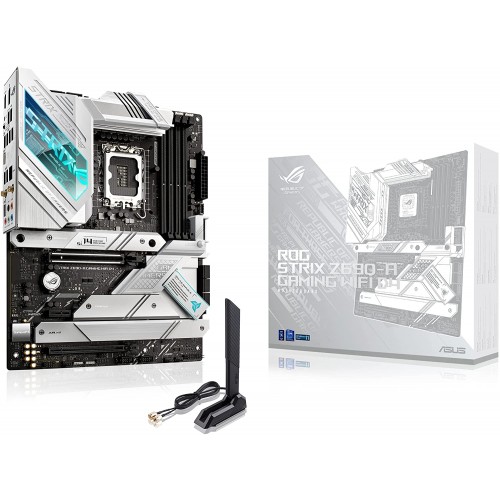

ASUS ROG Strix Z690-A Gaming WiFi D4 LGA 1700 Intel 12th Gen ATX Gaming Motherboard
Learn more about the Asus STRIX Z690-A GAMING WIFI D4
SPECIFICATIONS –
| Model | |
| Brand | ASUS |
| Series | ROG |
| Model | STRIX Z690-A GAMING WIFI D4 |
| Supported CPU | |
| CPU Socket Type | LGA 1700 |
| * Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets. | |
| CPU Type | Supports 12th Gen Intel Core Processors |
| Supports Intel Pentium Gold / Celeron Processors | |
| * Refer to www.asus.com for CPU support list. | |
| Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* |
| * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipsets | |
| Chipset | Intel Z690 |
| Onboard Video | |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Memory | |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | DDR4 5333(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 |
| *Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| Expansion Slots | |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
| * Actual support may vary by CPU. | |
| * Please check PCIe bifurcation table in support site. | |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
| * Supports x4 mode. | |
| PCI Express x1 | 1 x PCIe 3.0 x1 |
| Storage Devices | |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
| M.2 | Intel 12th Gen Processors: |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 | |
| - Intel 12th Gen processors support PCIe 4.0 x4 mode. | |
| Intel Z690 Chipset: | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4) | |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)** | |
| * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. | |
| ** When M.2_4 is operating in SATA mode, SATA6G_2 will be disabled. | |
| Intel Optane Ready | Yes |
| Onboard Audio | |
| Audio Chipset | Realtek ALC4080 |
| Audio Channels | 7.1 Channels |
| Onboard LAN | |
| LAN Chipset | Intel 2.5Gb Ethernet |
| Max LAN Speed | 10/100/1000/2500Mbps |
| Wireless LAN | Wi-Fi 6 |
| 802.11a/b/g/n/ac/ax | |
| Bluetooth | Bluetooth 5.2 |
| Rear Panel Ports | |
| Back I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) |
| 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C) | |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMI port | |
| 1 x Wi-Fi Module | |
| 1 x Intel 2.5Gb Ethernet port | |
| 5 x Audio jacks | |
| 1 x BIOS FlashBack button | |
| 1 x Clear CMOS button | |
| Internal I/O Connectors | |
| Onboard USB | 1 x USB 3.2 Gen 2x2 connector (support USB Type-C) |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Other Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 5 x 4-pin Chassis Fan headers | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x AURA RGB header | |
| 1 x Clear CMOS header | |
| 1 x CPU Over Voltage jumper | |
| 1 x 12-1 pin Front Panel Audio header (AAFP) | |
| 1 x S/PDIF Out header | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| 1 x Thermal Sensor header | |
| 1 x Thunderbolt header | |
| Physical Spec | |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector |
| 2 x 8-pin +12V Power connectors | |
| Windows Compatibility | |
| Windows 11 | Ready |
| Features | |
| Features | Special Feature: |
| Extreme Engine Digi+ | |
| -5K Black Metallic Capacitors | |
| ASUS Q-Design | |
| M.2 Q-Latch | |
| PCIe Slot Q-Release | |
| Q-DIMM | |
| - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| Q-Slot | |
| ASUS Thermal Solution | |
| M.2 heatsink backplate | |
| M.2 heatsink | |
| VRM heatsink design | |
| ASUS EZ DIY | |
| BIOS FlashBack button | |
| BIOS FlashBack LED | |
| Clear CMOS button | |
| CPU Socket lever protector | |
| ProCool II | |
| Pre-mounted I/O shield | |
| SafeSlot | |
| SafeDIMM | |
| AURA Sync | |
| AURA RGB header | |
| - Addressable Gen 2 headers | |
| ASUS HYDRANODE | |
| - 1 x 12-1 pin Front Panel Audio header (AAFP) | |
| - 1 x Chassis fan support* (CHA_FAN1P) | |
| * Visit ASUS Website for the latest compatibility list. | |
| Software Features: | |
| ROG Exclusive Software | |
| GameFirst VI | |
| ROG CPU-Z | |
| Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion | |
| Sonic Radar III | |
| DTS Sound Unbound | |
| Anti-virus software | |
| ASUS Exclusive Software | |
| Armoury Crate | |
| - AIDA64 Extreme (60 days free trial) | |
| AURA Creator | |
| AURA Sync | |
| - Fan Xpert 4 | |
| Two-Way AI Noise Cancelation | |
| AI Suite 3 | |
| 5-Way Optimization with AI Overclocking | |
| TPU | |
| EPU | |
| DIGI+ VRM | |
| Fan Xpert 4 | |
| Turbo app | |
| MyAsus | |
| WinRAR | |
| UEFI BIOS | |
| AI Overclocking Guide | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| ASUS UEFI BIOS EZ Mode | |
| FlexKey | |
| MemTest86 | |
| BIOS: | |
| 256 Mb Flash ROM, UEFI AMI BIOS | |
| Manageability: | |
| WOL by PME, PXE | |
| Operating System: | |
| Windows 11 64-bit, Windows 10 64-bit | |
WARRANTY
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
