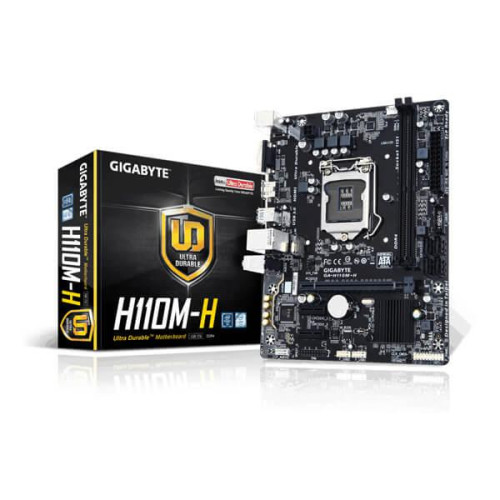

GIGABYTE GA-H110M-H LGA 1151 Intel H110 HDMI SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard

GIGABYTE GA-H110M-H LGA 1151 Intel H110 HDMI SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard

Price in reward points: 10
  • Brand: Gigabyte
  • Model No: GA-H110M-H
  • Reward Points: 10
  • Availability: In Stock
  • Shipping Free

Learn more about the Gigabyte GA-H110M-H







Supported CPU

CPU Socket Type

LGA 1151

CPU Type

Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)



Intel H110

Onboard Video

Onboard Video Chipset

Integrated Graphics


Number of Memory Slots

2 x DIMM

Memory Standard

DDR4 2133

Maximum Memory Supported


Channel Supported

Dual Channel

Expansion Slots

PCI Express x16

1 x PCI Express x16 slot, running at x16

PCI Express x1

2 x PCI Express x1

Storage Devices

SATA 6Gb/s

4 x SATA 6Gb/s

Onboard Audio

Audio Chipset

Realtek ALC887

Audio Channels

7.1 Channels

Onboard LAN

LAN Chipset


Max LAN Speed


Rear Panel Ports


1 x PS/2 mouse port

1 x PS/2 Keyboard port

Video Ports

1 x D-Sub port


1 x HDMI


1 x RJ45

USB 3.0

2 x USB 3.0 / 2.0

USB 1.1/2.0

2 x USB 2.0 / 1.1

Audio Ports

3 x audio jacks (Line In, Line Out, Mic In)

Internal I/O Connectors

Onboard USB

1 x USB 3.0 / 2.0 header + 2 x USB 2.0 / 1.1 headers

Other Connectors

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x Trusted Platform Module (TPM) header

1 x Clear CMOS jumper

Physical Spec

Form Factor

Micro ATX

Dimensions (W x L)

8.90" x 6.85"

Power Pin

24-pin ATX main power connector

4-pin ATX 12V power connector



Supports 6th Generation Intel Core Processor


Dual Channel DDR4, 2 DIMMs


Audio Noise Guard with High Quality Audio Capacitors


HDMI 1.4, D-sub ports for multiple display


Realtek GbE LAN with cFosSpeed Internet Accelerator Software


All new GIGABYTE APP Center, simple and easy use


Support Intel Small Business Basics



  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
