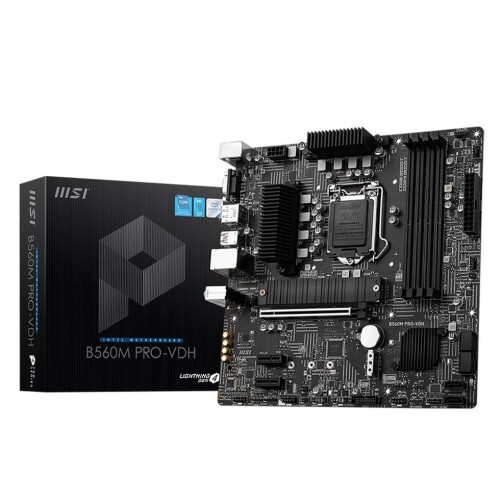

MSI B560M PRO-VDH LGA 1200 Micro-ATX Motherboard - MSI B560M PRO-VDH en - No data

  • Brand: MSI
  • Model No: MSI B560M PRO-VDH
  • Reward Points: 10
  • Availability: In Stock
  • Shipping Free
₹12,000 Price in reward points: 10

Learn more about the MSI MSI B560M PRO-VDH

SPECIFICATIONS –

Model MSI B560M PRO-VDH
CPU Support Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
CPU Socket 1200
Chipset Intel B560 Chipset
Form Factor Micro-ATX
Memory 4x DDR4 memory slots, support up to 128GB
  Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
  Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
  Supports Dual-Channel mode
  Supports non-ECC, un-buffered memory
  Supports Intel Extreme Memory Profile (XMP)
Graphics 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
  1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
  1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Expansion Slots 1x PCIe x16 slots
  -Support PCIe 4.0 for 11th Gen Intel CPU
  -Support PCIe 3.0 for 10th Gen Intel CPU
  2x PCIe 3.0 x1 slots (From B560 Chipset)
Storage 6x SATA 6Gb/s ports (From B560 chipset)
  2x M.2 slot (Key M)
  -M2_1 slot
  -Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU)
  -Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset)
  -Supports 2242/ 2260/ 2280/ 22110 storage devices
  -M2_2 slot2 (from B560 chipset)
  -Supports up to PCIe 3.0 x4
  -Supports 2242/ 2260/ 2280 storage devices
  Intel Optane Memory Ready
  Supports Intel Smart Response Technology for Intel Core processors
LAN 1x Realtek 8125B 2.5Gbps LAN controller
Audio Realtek AL897 Codec
  7.1-Channel High Definition Audio
BackPanel Ports 1x HDMI
  1x VGA
  1x DisplayPort
  1x Mouse / Keyboard
  LAN port
  Audio connector
  2x USB 2.0
  2x USB 3.2 Gen 2 10Gbps Type-A
  2x USB 3.2 Gen 1 5Gbps Type-A
Internal I/O Connectors 1x 24-pin ATX main power connector
  1x 8-pin ATX 12V power connector
  6x SATA 6Gb/s connectors
  2x M.2 slots (M-Key)
  1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports)
  2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  1x 4-pin CPU fan connector
  1x 4-pin water-pump fan connector
  2x 4-pin system fan connectors
  1x Front panel audio connector
  2x System panel connectors
  1x Chassis Intrusion connector
  1x Clear CMOS jumper
  1x TPM module connector
  1x Serial port connector
  1x Tuning Controller Connector
LED Features 1x 4-pin RGB LED connector
  1x 3-pin RAINBOW LED connector
  4x EZ Debug LED
Operating System Support for Windows 10 64-bit
Dimension 23.6 cm x 20.2 cm



WARRANTY

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
