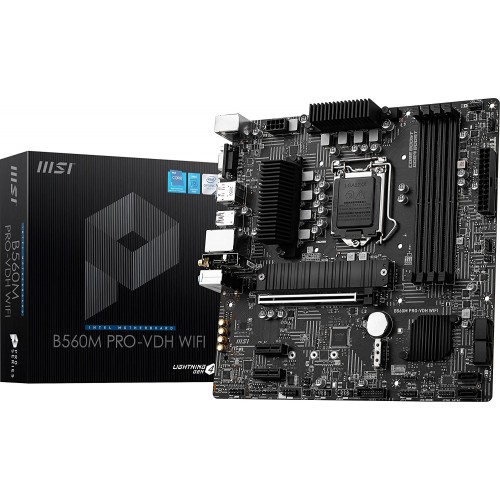

MSI B560M PRO-VDH WIFI LGA 1200 Intel B560 SATA 6Gb/s Micro ATX Intel Motherboard - B560M PRO-VDH WIFI en - No data
- Brand: MSI
- Model No: B560M PRO-VDH WIFI
- Reward Points: 10
- Availability: In Stock
- Shipping Free
₹11,950
Price in reward points: 10
Learn more about the MSI B560M PRO-VDH WIFI
SPECIFICATIONS –
| CPU | Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1 |
| Processor socket LGA1200 | |
| MEMORY | 4x DDR4 memory slots, support up to 128GB1 |
| Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) | |
| Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) | |
| Max overclocking frequency: | |
| 1DPC 1R Max speed up to 5066 MHz | |
| 1DPC 2R Max speed up to 4600+ MHz | |
| 2DPC 1R Max speed up to 4266+ MHz | |
| 2DPC 2R Max speed up to 4000+ MHz | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports Intel® Extreme Memory Profile (XMP) | |
| EXPANSION SLOT | 1x PCIe x16 slot (From CPU) |
| PCI_E1 (From CPU) | |
| Support up to PCIe 4.0 for 11th Gen Intel® CPU | |
| Support up to PCIe 3.0 for 10th Gen Intel® CPU | |
| 2x PCIe 3.0 x1 slots (From B560 chpiset) | |
| ONBOARD GRAPHICS | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz |
| 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz | |
| 1x VGA port, supports the maximum resolutions of 2048x1536 @50Hz, 2048x1280 @60Hz and 1920x1200 @60Hz | |
| 1. Available only on processors featuring integrated graphics. | |
| 2. Graphics specifications may vary depending on the CPU installed. | |
| AUDIO | Realtek® AL897 Codec |
| 7.1-Channel High Definition Audio | |
| NETWORKING / LAN / WiFI | 1x Realtek® 8125B 2.5Gbps LAN controller |
| Intel® Wi-Fi 6 AX201 | |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| WiFi 6 pre certified | |
| Supports Bluetooth® 5.1, FIPS, FISMA | |
| STORAGE | 6x SATA 6Gb/s ports (From B560 chipset) |
| 2x M.2 slot (Key M) | |
| M2_1 slot | |
| Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU) | |
| Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)1 | |
| Supports 2242/ 2260/ 2280/ 22110 storage devices | |
| M2_2 slot | |
| Supports up to PCIe 3.0 x4 | |
| Supports 2242/ 2260/ 2280 storage devices | |
| Intel® Optane™ Memory Ready1 | |
| Supports Intel® Smart Response Technology for Intel Core™ processors | |
| USB | Intel® B560 Chipset |
| 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel | |
| 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) | |
| 2x USB 2.0 Type-A ports on the back panel | |
| USB Hubs GL850G | |
| 4x USB 2.0 ports are available through the internal USB 2.0 connectors | |
| FORM FACTOR | Miro-ATX Form Factor |
| 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) | |
| BIOS FEATURES | 1x 256 Mb flash |
| UEFI AMI BIOS | |
| ACPI 6.2, SMBIOS 3.0 | |
| Multi-language | |
| INTERNAL CONNECTORS | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 6x SATA 6Gb/s connectors | |
| 2x M.2 slots (M-Key) | |
| 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports) | |
| 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) | |
| 1x 4-pin CPU fan connector | |
| 1x 4-pin water-pump fan connector | |
| 2x 4-pin system fan connectors | |
| 1x Front panel audio connector | |
| 2x System panel connectors | |
| 1x Chassis Intrusion connector | |
| 1x Clear CMOS jumper | |
| 1x TPM module connector | |
| 1x Serial port connector | |
| 1x Tuning Controller Connector | |
| LED FEATURE | 1x 4-pin RGB LED connector |
| 1x 3-pin RAINBOW LED connector | |
| 4x EZ Debug LED | |
| BACK PANEL CONNECTORS | Keyboard / Mouse |
| VGA | |
| DisplayPort | |
| USB 3.2 Gen 2 10Gbps Type-A | |
| LAN port | |
| Audio connector | |
| USB 2.0 | |
| HDMI | |
| USB 3.2 Gen 1 5Gbps Type-A |
WARRANTY
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
