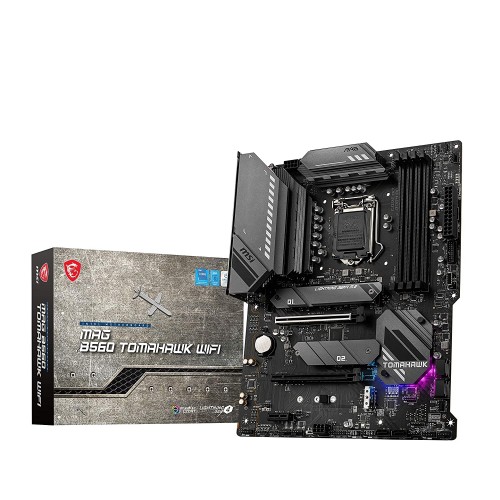

MSI MAG B560 TOMAHAWK WIFI LGA 1200 Intel B560 SATA 6Gb/s Intel Motherboard - MAG B560 TOMAHAWK WIFI en - No data

  • Brand: MSI
  • Model No: MAG B560 TOMAHAWK WIFI
  • Reward Points: 10
  • Availability: In Stock
  • Shipping Free
₹19,950 Price in reward points: 10

Learn more about the MSI MAG B560 TOMAHAWK WIFI

SPECIFICATIONS –

PROCESSOR Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron®
  Processor socket LGA1200
CHIPSET Intel® B560 Chipset
MEMORY 4 x DDR4 memory slots, support up to 128GB
  Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
  Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
  Max overclocking frequency:
  1DPC 1R Max speed up to 5066 MHz
  1DPC 2R Max speed up to 4600+ MHz
  2DPC 1R Max speed up to 4266+ MHz
  2DPC 2R Max speed up to 4000+ MHz
  Supports Dual-Channel mode
  Supports non-ECC, un-buffered memory
  Supports Intel® Extreme Memory Profile (XMP)
EXPANSION SLOTS 2x PCIe x16 slots
  1. PCI_E1 (from CPU)
  1. Support up to PCIe 4.0 for 11th Gen Intel® CPU
  2. Support up to PCIe 3.0 for 10th Gen Intel ® CPU
  2. PCI_E2 (from B560 chipset)
  1. Support up to PCIe 3.0 x4
  1x PCIe 3.0 x1 slot (from B560 chipset)
ONBOARD GRAPHICS 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
  1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
  1. Available only on processors featuring integrated graphics
  2. Graphics specifications may vary depending on the CPU installed.
MULTI-GPU Supports 2-Way AMD® CrossFire™ Technology
STORAGE 6x SATA 6Gb/s ports (from B560 chipset)
  3x M.2 slots (Key M)
  M2_1 slot (from CPU)
  1. Available only on 11th Gen Intel® CPU
  2. Supports up to PCIe 4.0 x4
  3. Supports 2242/ 2260/ 2280/ 22110 storage devices
  M2_2 slot (from B560 chipset)
  1. Supports up to PCIe 3.0 x4
  2. Supports SATA up to 6Gb/s
  3. Supports 2242/ 2260/ 2280 storage devices
  M2_3 slot (from B560 chipset)
  1. Supports up to PCIe 3.0 x4
  2. Supports 2242/ 2260/ 2280 storage devices
  3. Intel® Optane™ Memory Ready
  Supports Intel® Smart Response Technology for Intel Core™ processors
  1. SATA1 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
  2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
USB Intel® B560 Chipset
  1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel)
  1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector)
  6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector)
  4x USB 2.0 ports on the back panel
  Hub-GL850G
  4x USB 2.0 ports available through the internal connectors
AUDIO Realtek® ALC897 Codec
  7.1-Channel High Definition Audio
  Supports S/PDIF output
LAN 1x Realtek® RTL8125B 2.5Gbps LAN controller
WIRELESS LAN & BLUETOOTH Intel®Wi-Fi 6E AX210
  The Wireless module is pre-installed in the M.2 [Key-E] slot
  Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz(160MHz) up to 2.4Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax
  Supports Bluetooth® 5.2, FIPS, FISMA
  1. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.
INTERNAL CONNECTORS 1x 24-pin ATX main power connector
  1x 8-pin ATX 12V power connector
  1x 4-pin ATX 12V power connector
  1x 6-pin PCIE power connector
  6x SATA 6Gb/s connectors
  3x M.2 slots (M-Key)
  1x USB 3.2 Gen 2 10Gbps Type-C port
  1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  1x 4-pin CPU fan connector
  1x 4-pin water-pump fan connector
  5x 4-pin system fan connectors
  1x Front panel audio connector
  2x System panel connectors
  1x Chassis Intrusion connector
  1x Clear CMOS jumper
  1x TPM module connector
  1x TBT connector (supports RTD3)
  1x Tuning Controller connector
LED FEATURE 1x EZ LED Control switch
  2x 4-pin RGB LED connectors
  2x 3-pin RAINBOW LED connectors
  4x EZ Debug LED
BACK PANEL PORTS USB 2.0
  DisplayPort
  2.5G LAN Port
  Wi-Fi / Bluetooth Antenna
  HD Audio Connectors
  HDMI
  USB 3.2 Gen 1 5Gbps Type-A
  USB 3.2 Gen 1 5Gbps Type-A
  USB 3.2 Gen 2x2 20Gbps Type-C
  Optical S/PDIF OUT



WARRANTY

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
