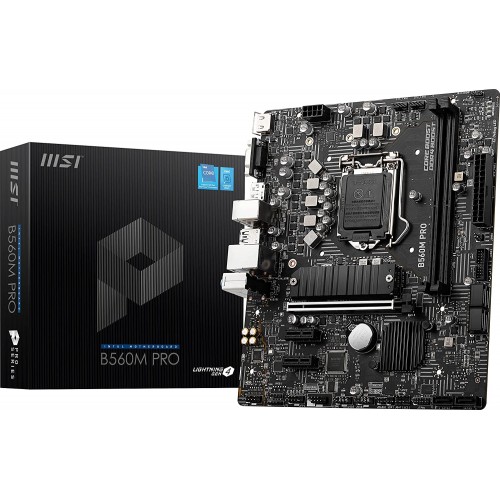

MSI PRO B560M PRO LGA 1200 Intel B560 SATA 6Gb/s Micro ATX Intel Motherboard - B560M PRO en - No data

  • Brand: MSI
  • Model No: B560M PRO
  • Reward Points: 10
  • Availability: In Stock
  • Shipping Free
₹10,000 Price in reward points: 10

Learn more about the MSI B560M PRO

SPECIFICATIONS –

CPU Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
  Processor socket LGA1200
CHIPSET Intel® B560 chipset
MEMORY 2x DDR4 memory slots, support up to 64GB
  Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
  Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
  Max overclocking frequency:
  1DPC 1R Max speed up to 5200 MHz
  1DPC 2R Max speed up to 4700+ MHz
  Supports Dual-Channel mode
  Supports non-ECC, un-buffered memory
  Supports Intel® Extreme Memory Profile (XMP)
EXPANSION SLOT 1x PCIe x16 slot (From CPU)
  Support up to PCIe 4.0 for 11th Gen Intel® CPU
  Support up to PCIe 3.0 for 10th Gen Intel® CPU
  2x PCIe 3.0 x1 slots (From B560 chpiset)
ONBOARD GRAPHICS 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
  1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
  1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.
AUDIO Realtek® ALC897 Codec
  7.1-Channel High Definition Audio
LAN 1x Realtek® 8125B 2.5Gbps LAN controller
STORAGE 6x SATA 6Gb/s ports (From B560 chipset)
  1x M.2 slot (Key M)
  Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU)
  Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)
  Supports 2242/ 2260/ 2280 storage devices
  Supports Intel® Smart Response Technology for Intel Core™ processors

  Intel® Optane™ Memory Ready. Before using Intel®® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
USB Intel® B560 Chipset
  6x USB 2.0 ports (2 Type-A port on the back panel, 4 ports available through internal USB 2.0 connectors)
  6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through internal USB 3.2 Gen1 connector)
FORM FACTOR mATX Form Factor
  9.3 in. x 8.0 in. (23.6 cm x 20.2 cm)
BIOS FEATURES 1x 256 Mb flash
  UEFI AMI BIOS
  ACPI 6.2, SMBIOS 3.0
  Multi-language
INTERNAL CONNECTORS 1x 24-pin ATX main power connector
  1x 8-pin ATX 12V power connector
  6x SATA 6Gb/s connectors
  1x M.2 slot (M-Key)
  1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  1x 4-pin CPU fan connector
  1x 4-pin system fan connector
  1x Front panel audio connector
  2x System panel connectors
  1x Chassis Intrusion connector
  1x Clear CMOS jumper
  1x TPM module connector
  1x Serial port connector
  1x Tuning Controller Connector
LED FEATURE 1x 4-pin RGB LED connector
  1x 3-pin RAINBOW LED connector
  4x EZ Debug LED
BACK PANEL CONNECTORS 1. HDMI
  2. VGA
  3. DisplayPort
  4. Keyboard / Mouse
  5. LAN port
  6. Audio connector
  7. USB 2.0
  8. USB 3.2 Gen 1 5Gbps Type-A
  9. USB 3.2 Gen 1 5Gbps Type-A



WARRANTY

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
